openThere are different soldering robot model for option,4 axis, 5 axis, 2heads, with flowing line and so on

There are different soldering robot model for option,4 axis, 5 axis, 2heads, with flowing line and so on

  • suitable for soldering machine there are different soldring robot model for option, 4axis, 5axis, 2head with flowing line and so on Model IE-380C Trace(X/Y/Z/R)mm 500*350*100*330 degree Axis Axle:5axle+tin solder Loading 10kg Repeat Accuracy 0.02mm Operation speed (X/Y/Z/R) 800mm/s R:180Degree /s Temprature 180degree c~480degree c System Dedicated control system + torque servo + screw Solder Wire Dia 0.6~1.2mm(customized) MIn tin length 0.1mm working environment 0~40degree c, humidity 20%~95%(non-condesing) machine size (W*D*H)750*580*850mm Weight 95kg

    • n

  • this machine robotic soldering machine tail
Add to WishlistRemove from Wishlist
Add to Wishlist
Share
SKU 25
Category

    machine features

    • suitable for special robotic soldering machine4 axis robot soldering machine Main Function
      1. The fourth generation welding head with precision cylinder and rail buffer and angle adjustment structure
      2. The base of the machine is made of sheet metal and CNC machined to ensure the precision and consistency of the parts. It also ensures the stability of the machine operation.
      3. The tin-broken system equipped on the machine itself can prevent the tin slag from exploding when the machine is in operation.
      4. The X, Y and Z axes of the fuselage adopt double guide structure to improve the stability of the machine operation
      5. Digitize the program, modify the parameters directly, change the same tin spot once, insert and delete one click
      6. Unlimited procedural recording capabilities
      7. Touch screen + wireless remote control teach pendant operation
      8. The controller adopts man-machine interaction, good data processing capability, powerful network communication functions, and IPC that can execute relatively complicated control algorithms and its near-unlimited storage capacity.
      9. CCD positioning device with high speed and high separation rate to effectively improve the positioning accuracy of the moving end (customized according to customer requirements)
      10. Unique fast and high precision temperature control technology based on power compensation, soldering power 400w/600W (optional)
      11. Machines can connect to soldering machine inspection cloud-based, like fault pre-warning, and diagnostics intelligent after-sales service cloud platform
      12. Machine with blow-type tip cleaning box
      13. 12-inch high-definition touch screen man-machine interface, trajectory display, soldering process is more intuitive
      14. Optional pneumatic soldering capability
      15. With anti-collision function, it can reduce the damage rate of accidental collision of the machine
      16. Multi-user authority management mode to prevent operators from changing parameters by mistake
      17. The machine integrates ERP and MES system communication and downloads the program from a specific server automatically. The acquisition of equipment status, the uploading of production data and the equipment parameters can all be invoked via ERP and MES (optional).
      18. Support to install bar code scanning code
      19. The width of the assembly line is freely adjustable, suitable for most of product soldering.
      20. Intelligent smoke purification filter device to ensure the cleanliness and safety of the production environment
      21. The system display language is Chinese, English and Japanese
      22. The temperature sensor uses a thermal resistor to increase the accuracy of temperature data acquisition. Its applicable range is -199°C to 649°C.
      23. 400W/600W high-frequency eddy current silver wire heating wire heater
      24. Number of soldering iron setting and soldering times setting, automatic alarm setting; Sn/tin-plating automatic alarm setting.
      Detailed Image
      Feature.

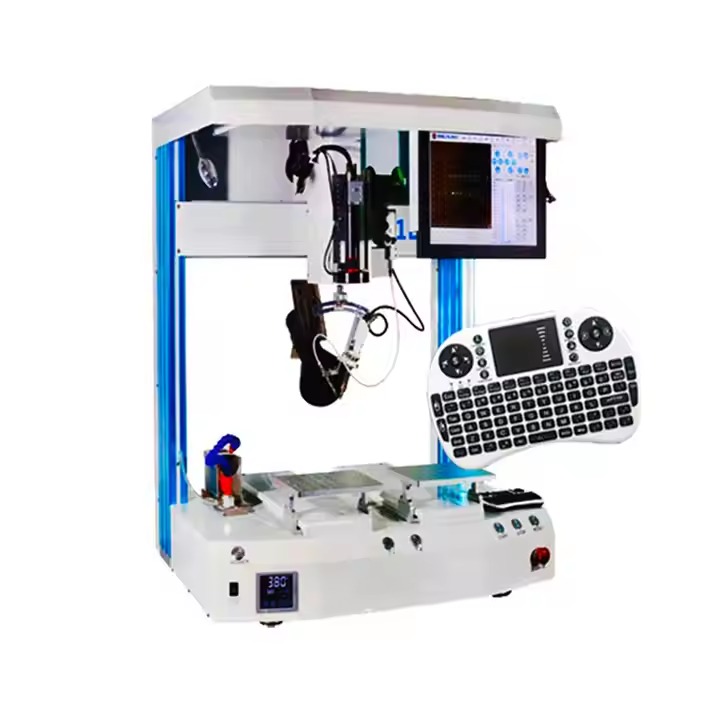

      1.Wireless remote control, easy to edit soldering program

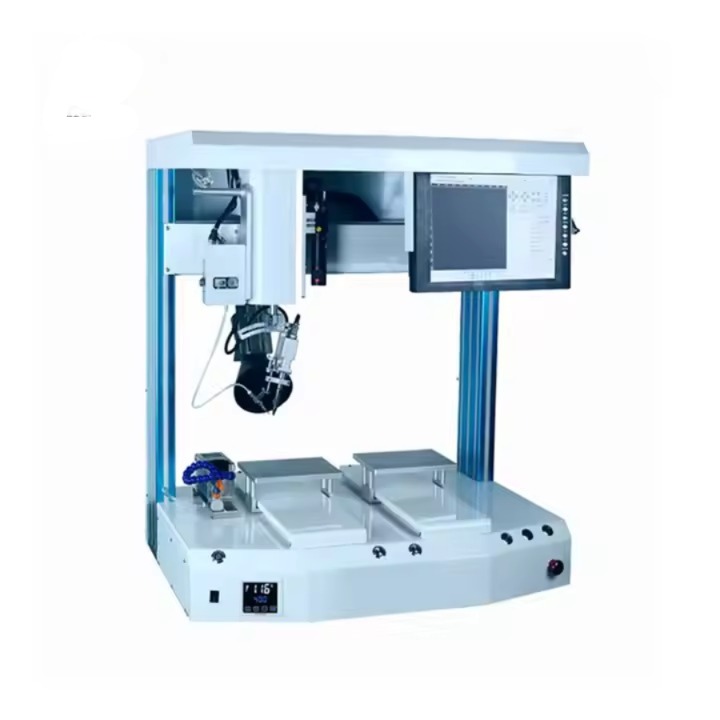

      2.12-inch high-definition touch screen man-machine interface, trajectory display,soldering process is more intuitive

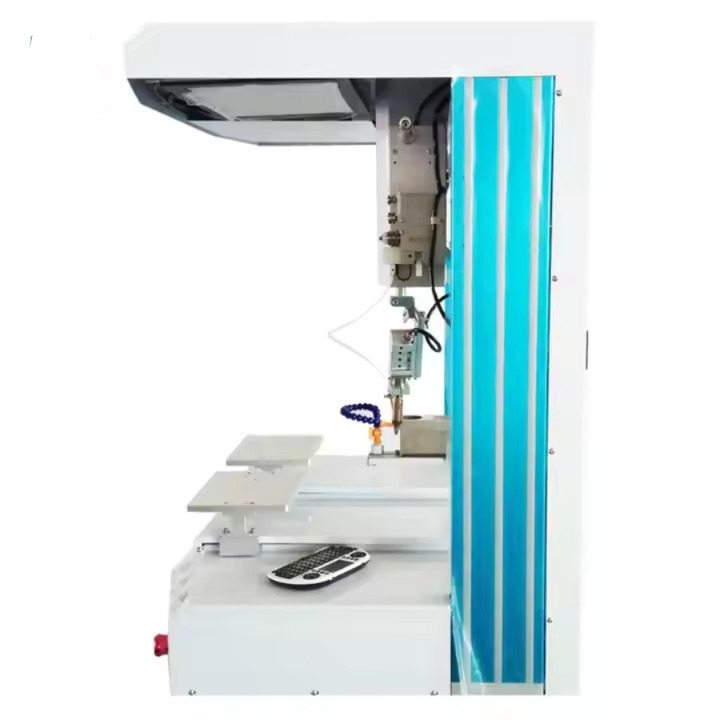

      3. The fourth generation welding head with precision cylinder and rail buffer and angle
      4.Unique fast and high precision temperature control technology based on power compensation, soldering power 400w/600W (optional)

        /

      • suitable for soldering machine there are different soldring robot model for option, 4axis, 5axis, 2head with flowing line and so on Model IE-380C Trace(X/Y/Z/R)mm 500*350*100*330 degree Axis Axle:5axle+tin solder Loading 10kg Repeat Accuracy 0.02mm Operation speed (X/Y/Z/R) 800mm/s R:180Degree /s Temprature 180degree c~480degree c System Dedicated control system + torque servo + screw Solder Wire Dia 0.6~1.2mm(customized) MIn tin length 0.1mm working environment 0~40degree c, humidity 20%~95%(non-condesing) machine size (W*D*H)750*580*850mm Weight 95kg
