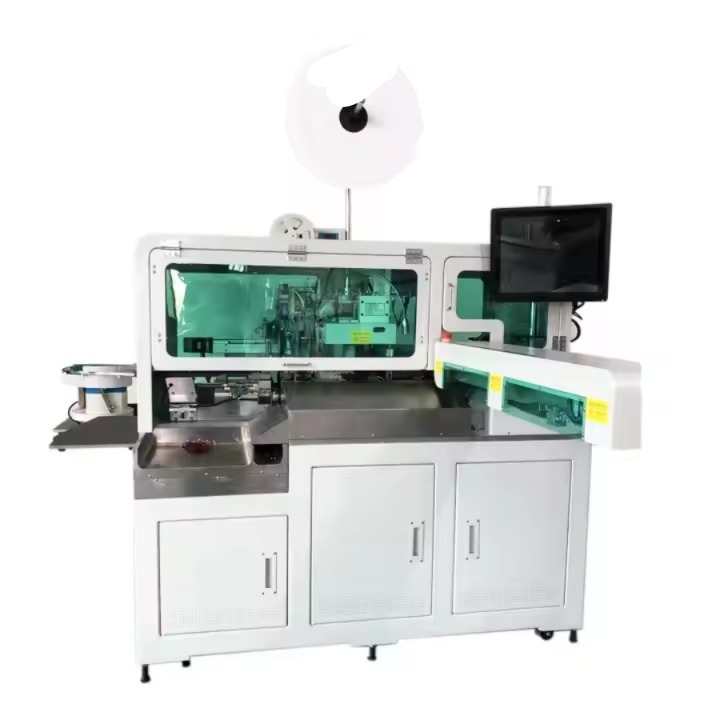

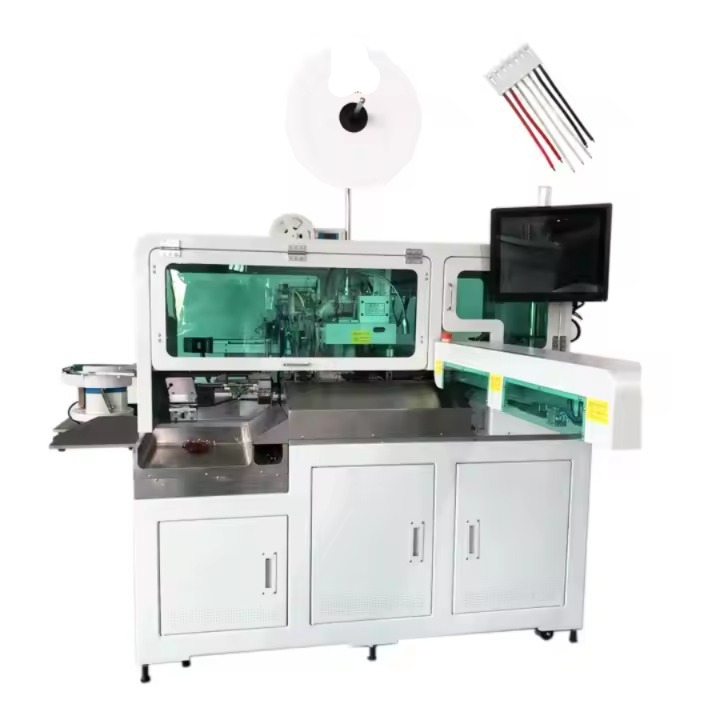

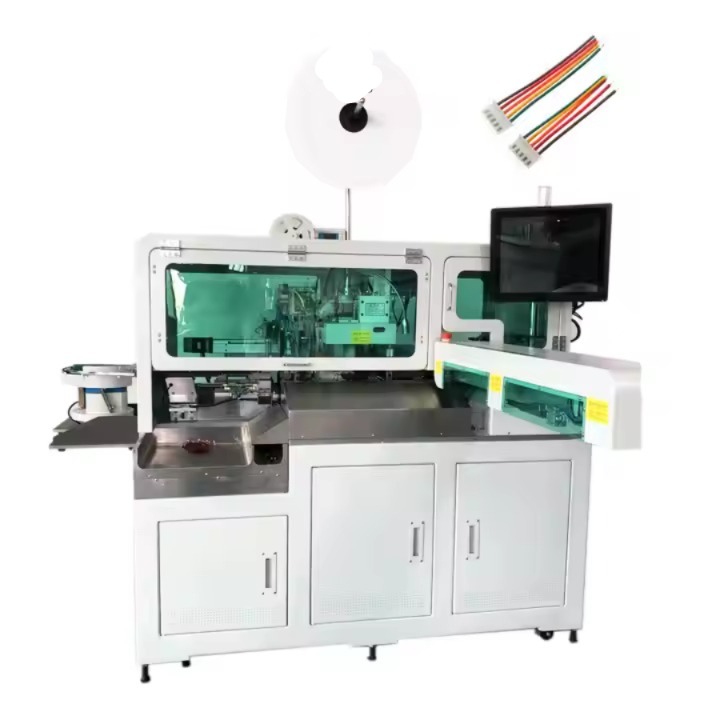

Other Customized Automatic Machine Full automatic Cutiing Stripping Crimping housinf inserting tinning machine

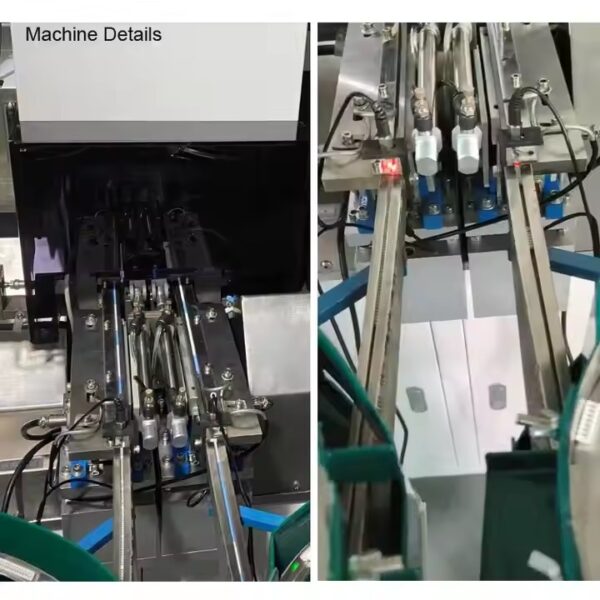

Machine features
1

• suitable for Other Customized Automatic Machine Automatic wire harness assembly production line one head tinning and one head crimping housing machine with CCD CFM
  Product details
  Model SR-BX860
  Cutting length 40-1000mm
  Cutting error ±(0.2mm + 1% x cutting length)
  Applicable cable AWG18~AWG30, OD 0.8~2.5mm.
  Crimping force 2T or customized base on products
  Stripping length 1-7mm
  Efficiency 1800~2200pins/H (when length 100mm)
  Air supply 0.5~0.7MPA
  Display Touch screen
  Warranty 1 Year
  Specification:
  Technical Index
  Tech-Parameters
  Model
  SR-BX860
  Display
  Touch panel

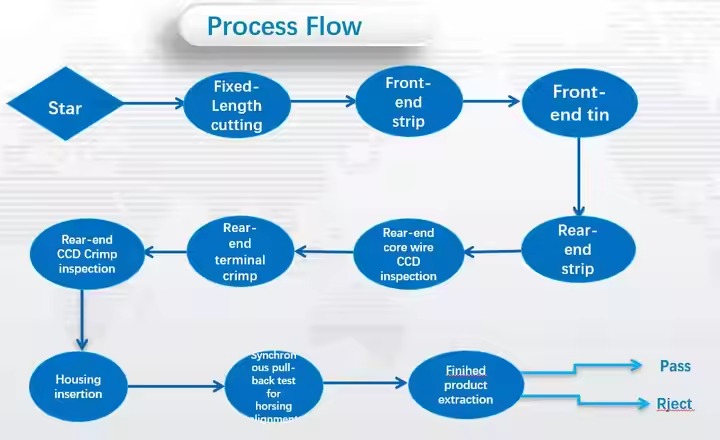

  Function
  cut, strip, crimp, insert housing, dip tin
  Production rate
  1800~2200pins/H (when length 100mm)
  Available wire
  AWG18~AWG30, OD 0.8~2.5mm. 7 different wires.
  Cutting tolerance
  ±(0.2mm + 1% x cutting length)
  Cutting Length
  40~1000mm

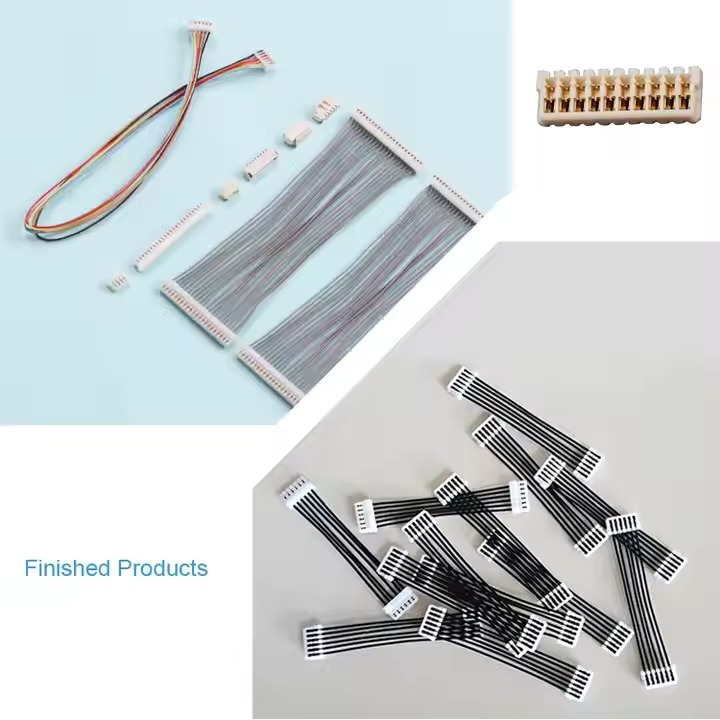

  Applicable housing
  Within W35×H18×D18mm
  Applicable terminal
  Within W3.5×H4.5×L18mm
  Crimping force
  2T or customized base on products
  Stripping length
  1-7mm

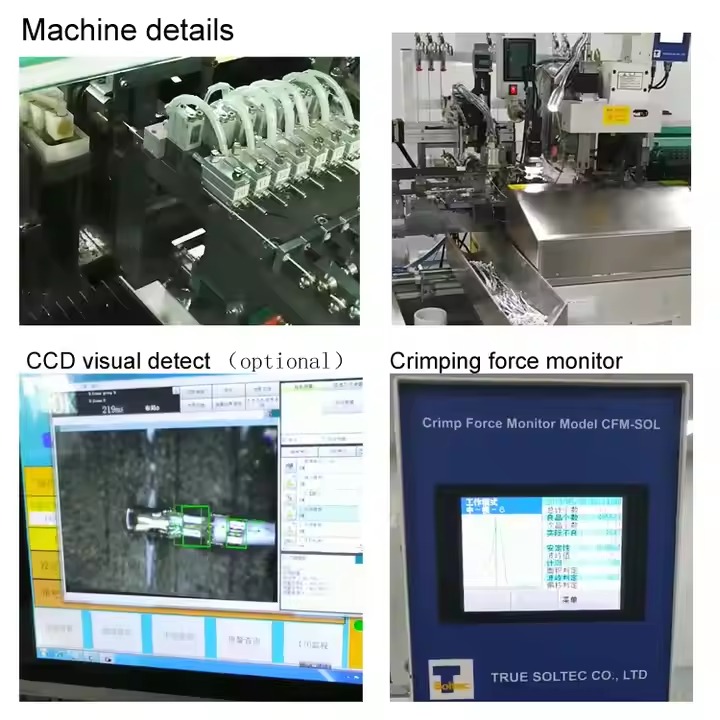

  Detector
  Optional: terminal pressure detection, CCD terminal appearance inspection.
  Standard: insertion force detection.
  Air supply
  0.5~0.7MPA
  Tool material
  Tungsten steel
  Machine Dimensions(L*W*H)
  2200*2100*2300mmm
  Machine Weight
  1100 Kg
  • suitable for Other Customized Automatic Machine Full automatic cutting stripping crimping housing inserting tinning machine Automatically cut cable, strip skin, crimp terminal, insert housing, one end dip tin, all in one machine Technical Index Tech-parameters Model-IE-BZ860 Display Touch panel Function cut, strip , crimp, insert housing, dip tin Production rate 1800~2200pins/H(when length 100mm) Availble cable AWG18~AWG30,OD 0.8~2.5mm Cutting tolerance (0.2mm+1%*cutting length) Cutting length 40-1000mm Applicable housing within W35*H18*D18mm Applicable terminal Within W3.5*H4.5*D18mm Applicable terminal Within W3.5*H4.5*L18mm Crimping force 2Tor customized base on products Stripping length 1-7mm Detector Optional:crimping force monitor,CCD terminal appearance inspection. Standard: insertion force detection. Air supply 0.5~0.7 Tool material Tungsten steel Machine Dimension(L*W*H) 2200*2100*2300mm MAchine Weight 110Kg

  n

  • the Fully automatic Cutting Stripping Crimping Housing inserting tinning machine Automatically cut cable, strip skin, crimp terminal, insert housing, one end dip tin, all in one mahcine tail
  • ---
