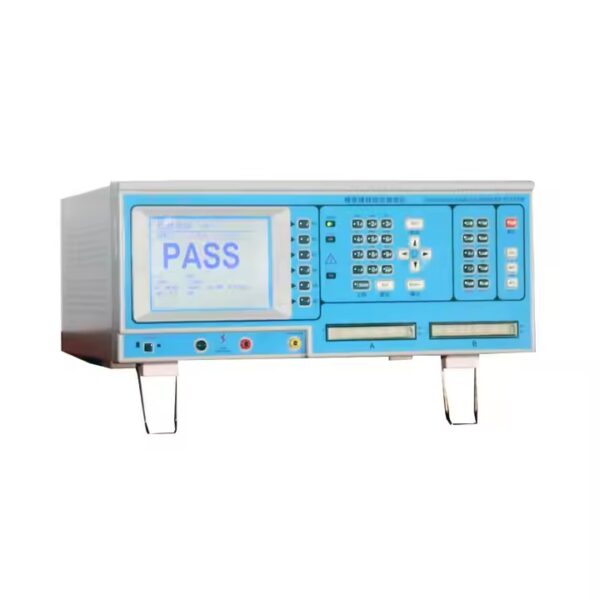

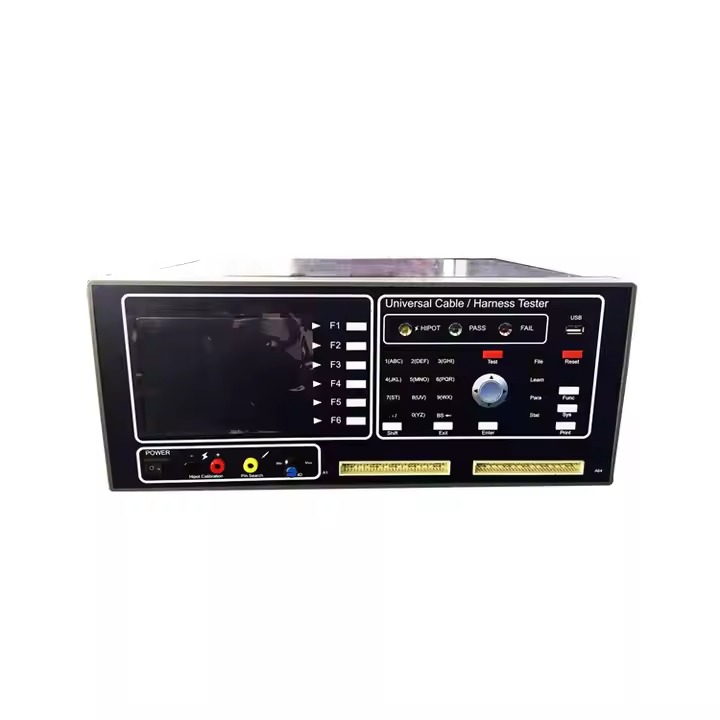

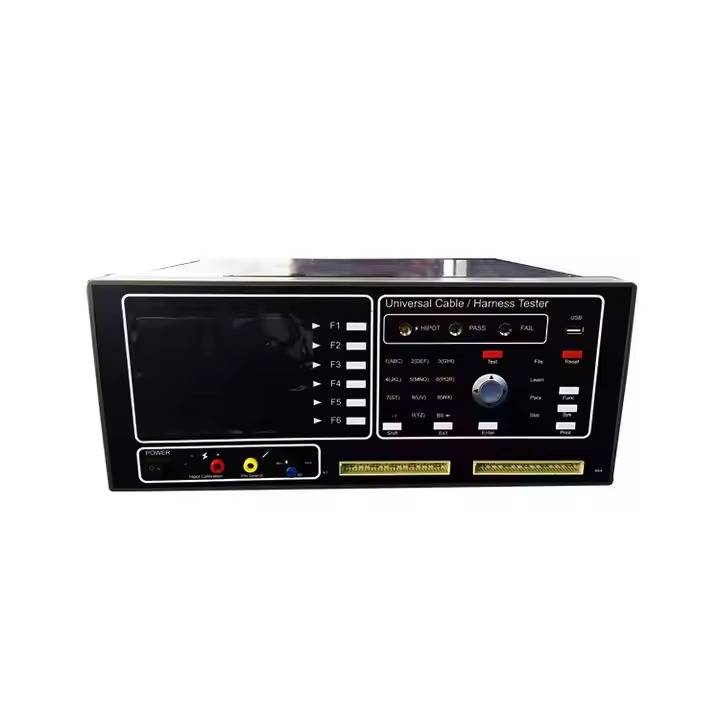

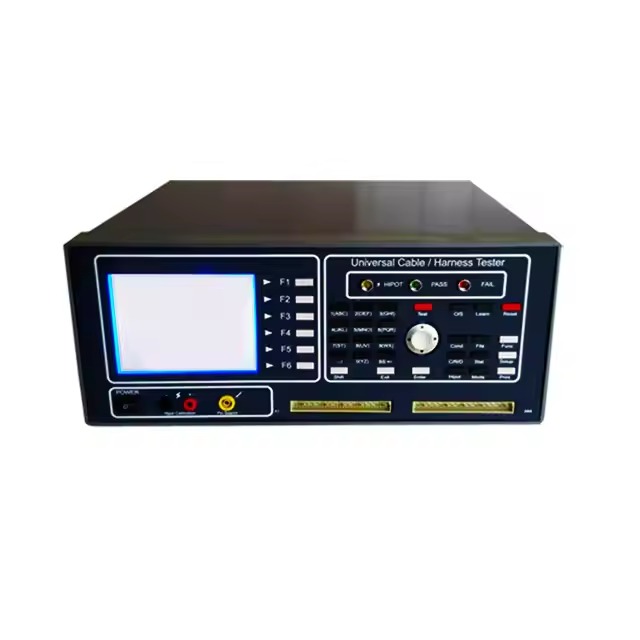

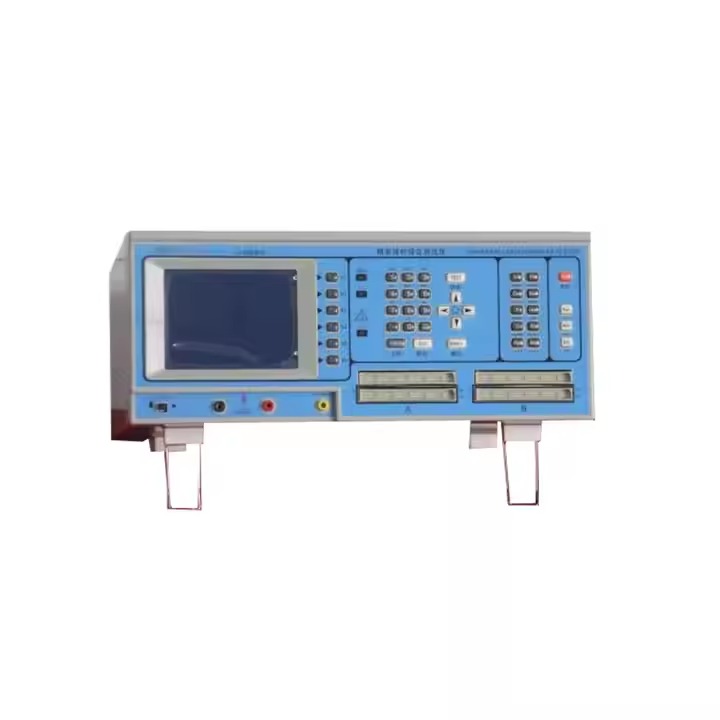

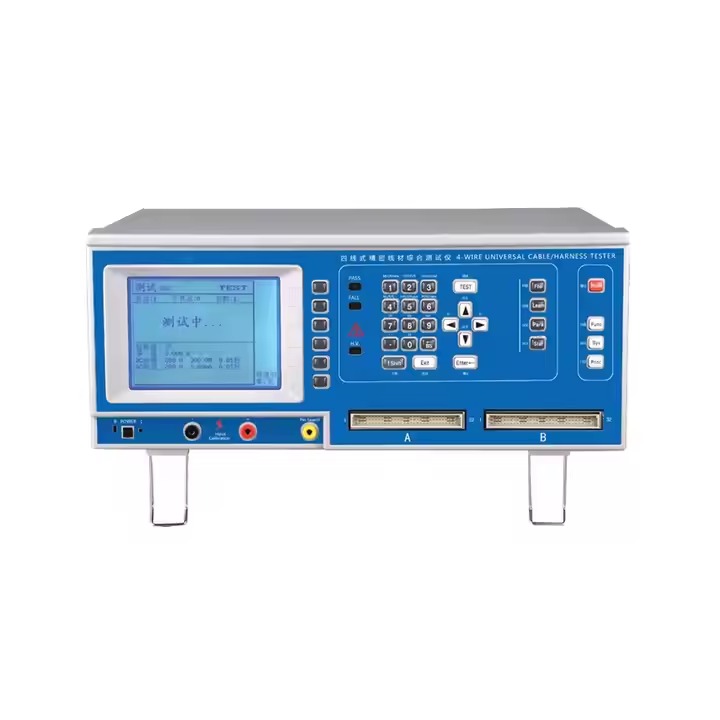

Universal Cable Tester Suitable for cable, communication cable, HDMI cable, USB cable, cable etc,
- Brand:-Indoe Enterprises
- Model:-350A
- Open / short:-O / S200Ω ~ 50KΩ
- Instant on-resistance test:-INT.COND50mΩ ~ 10Ω ON
- Resistance test:-COND50mΩ ~ 500Ω
- Resistance measurement:-R0.1Ω ~ 10MΩ
- Capacitance measurement:-C10pF ~ 1000μF
- Diode measurement:-D0.0V ~ 7.0V
- Insulation resistance: I.S:-1MΩ ~ 1000MΩ
- DC leakage current::-IE-0.1μA ~ 1000μA
- High voltage leakage current:-IE-0.1mA ~ 10mA
- Basic accuracy:-± 1%
- Test scan mode:-auto / manual scan can be switched
- Measurement speed:-0.1Sec basic value
- Measuring frequency and signal / voltage:-100 ~ 100KHz, 1VAC
- Low voltage measurement signal:-5VDC, 50mA max Accuracy: ± 0.5%
- High voltage (leakage current) test:-100~700VAC
- High voltage insulation test:-5V~1000VDC
- Test point:-64pin/128pin
- Memory device:-512KB RAM
