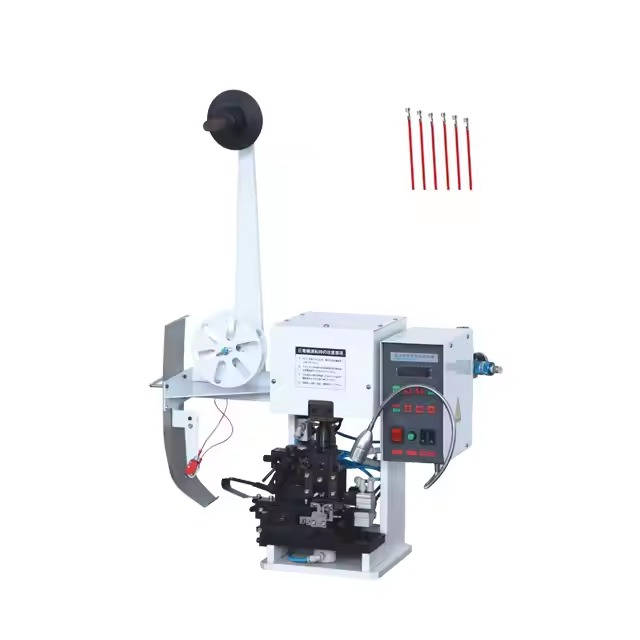

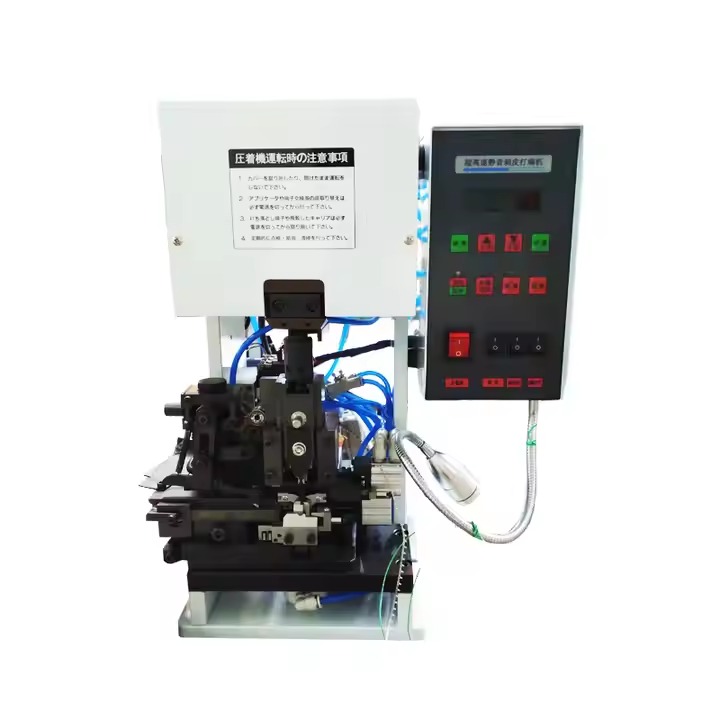

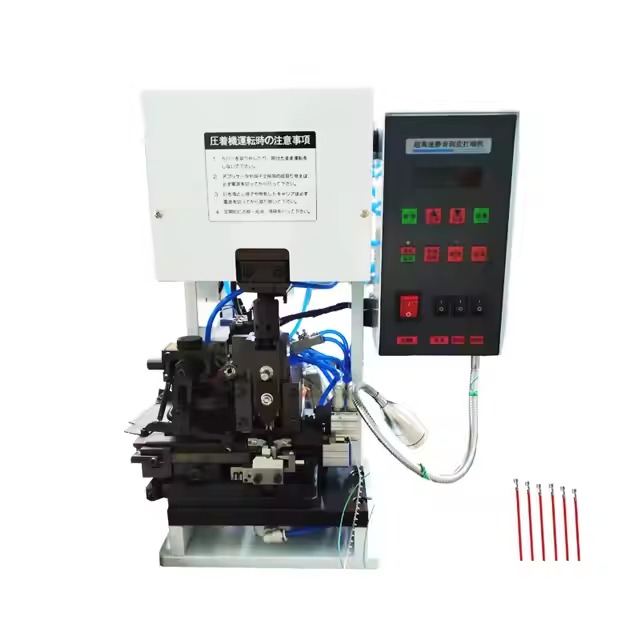

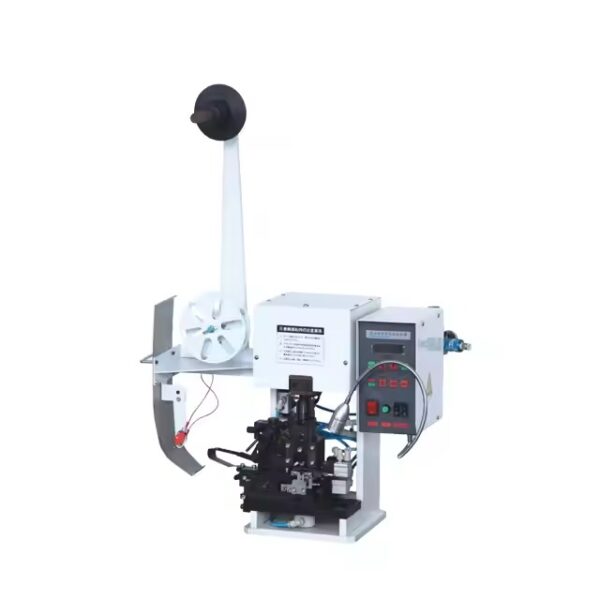

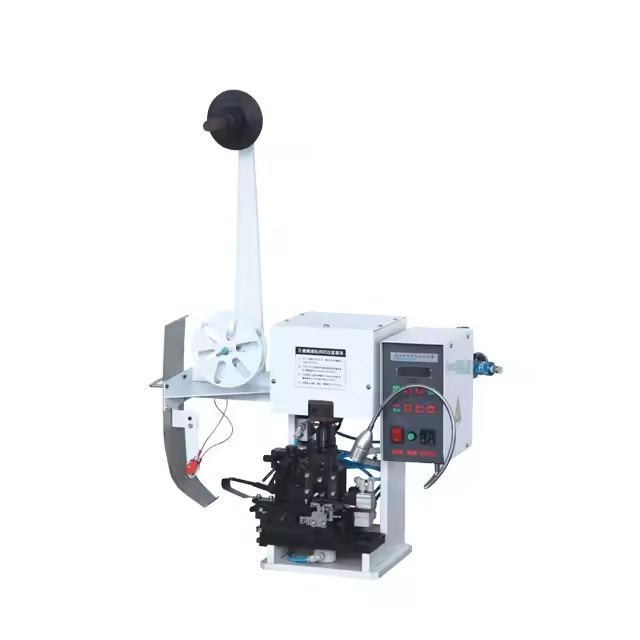

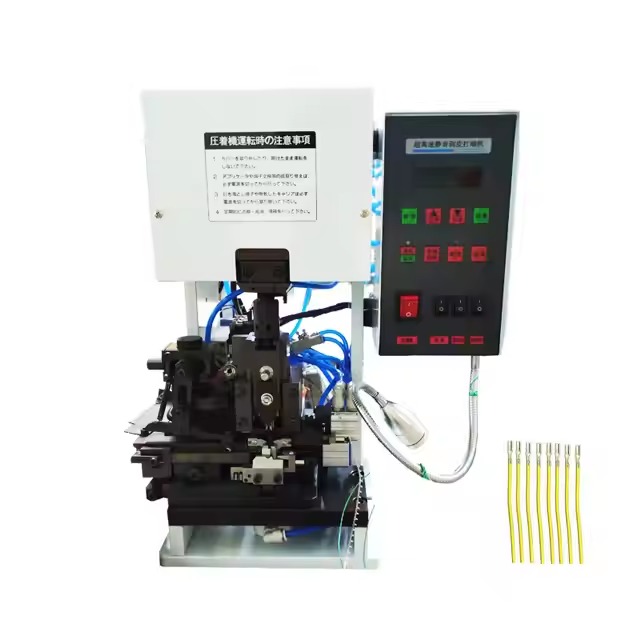

Terminal stripping crimping machine Ie- 1500T/2000T support stripping and crimping all in one machine

machine features

• suitable for special terminal stripping crimping machine IE-1500-2000T Support stripping and crimping all in one machine TechnicalIntroduction:
  This machine adopts advanced electronic control technology, and is equipped with advanced control module and transmission mechanism, so that stripping and crimping can be completed at one time. With low noise, low power consumption and high efficiency
  This machine is suitable for the side-feeding terminal crimping. The machine comes with one die set (horizontal mold).
  Features:
  For ultra-fine wires, the processing of multi-core shielded wires has obvious effects.
  (1) This machine’s wire stripping action is driven by the cylinder, with fast action speed and accurate positioning.
  (2) The waste after stripping is vacuum sucked, which is clean, convenient and simple.
  (3) For raw and manual operation, the press is driven by gear reduction, and the pressure is highly accurate.
  (4) This machine can adjust the overall speed by adjusting the air valve, so as to adapt to the proficiency of the operator.
  (5) It can effectively reduce processing procedures, reduce work difficulty, and improve work efficiency.
  • • suitable for special Terminal stripping crimping machine IE-1500-2000T Support stripping and crimping all in one machine Technical index Tech-Parameters Punching force 1.5T/2T Pressure of air source 0.3-0.4MPA(clean air) Stripping length 1-10mm/1-7mm Working Voltage 200-240V 50/60HZ trip 30mm/50mm Tangent error/ position error 0.05-0.1mm working Efficiency 2000-2500Pcs/H Machine Dimensions (L*W*H) 500*350*730mm Machine Weight 70kg/80kg

  n

  • this machine for special Terminal stripping crimping machine IE-1500T/2000T support stripping and crimping all in one machine tail
