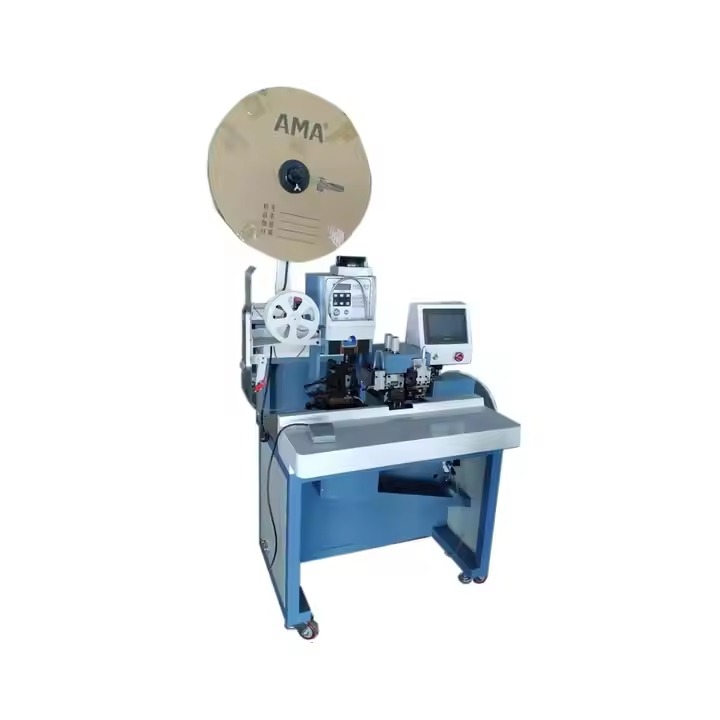

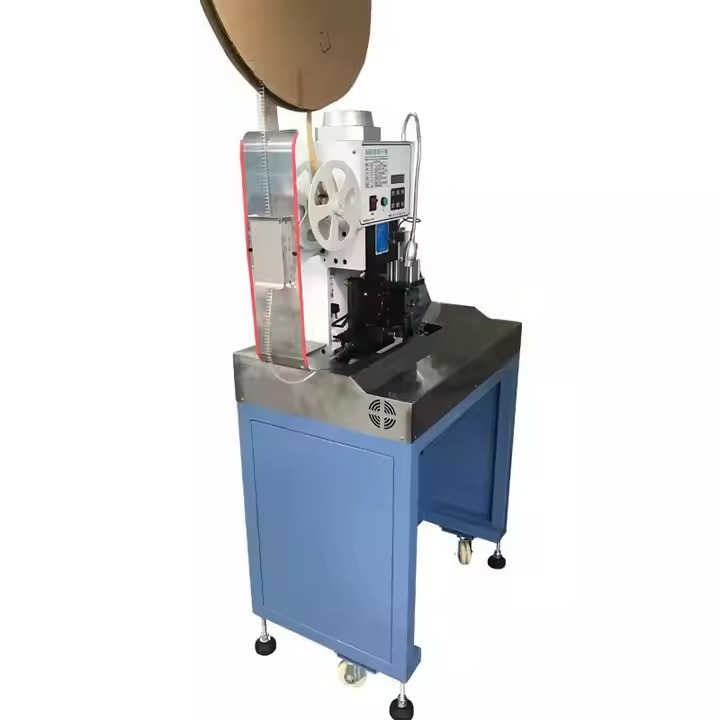

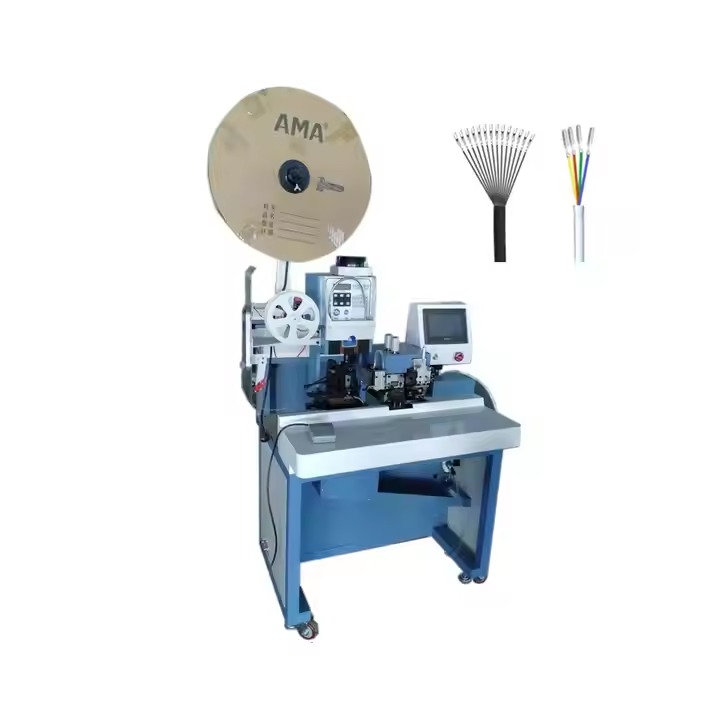

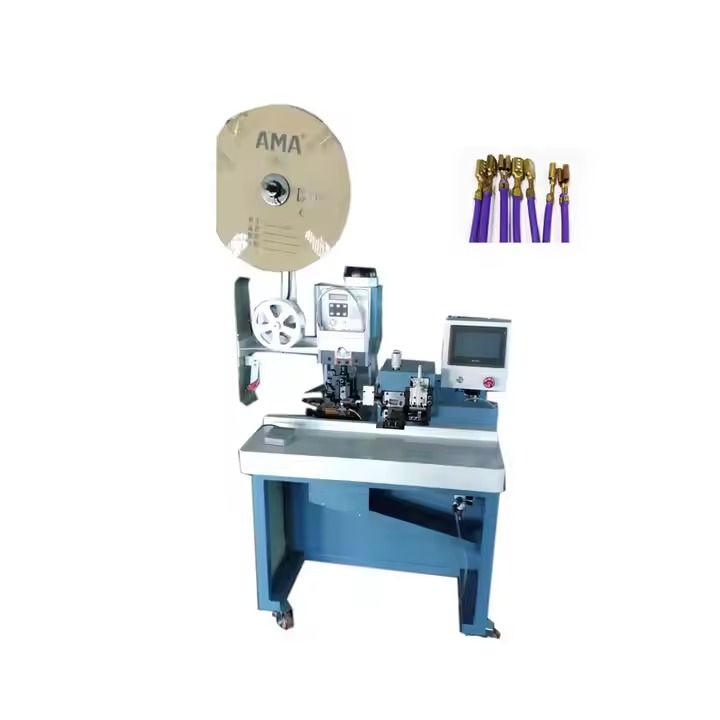

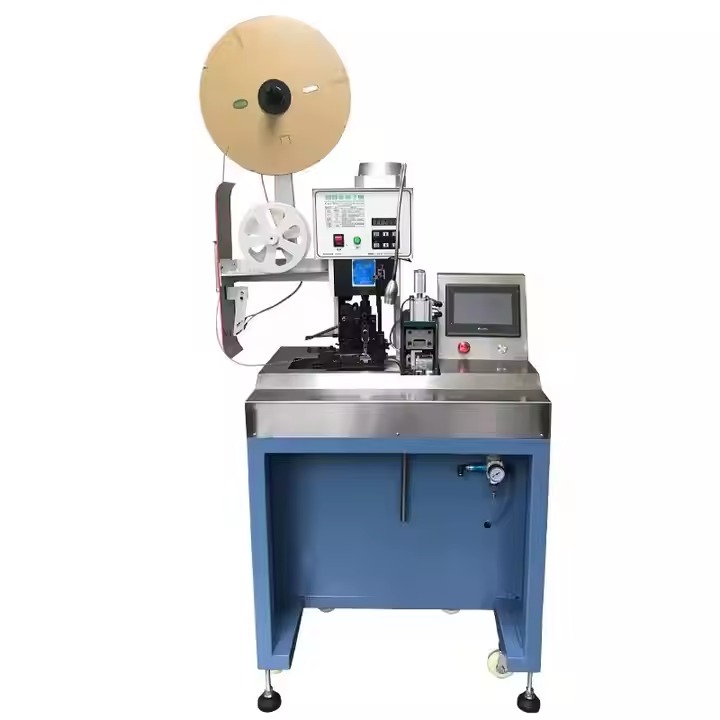

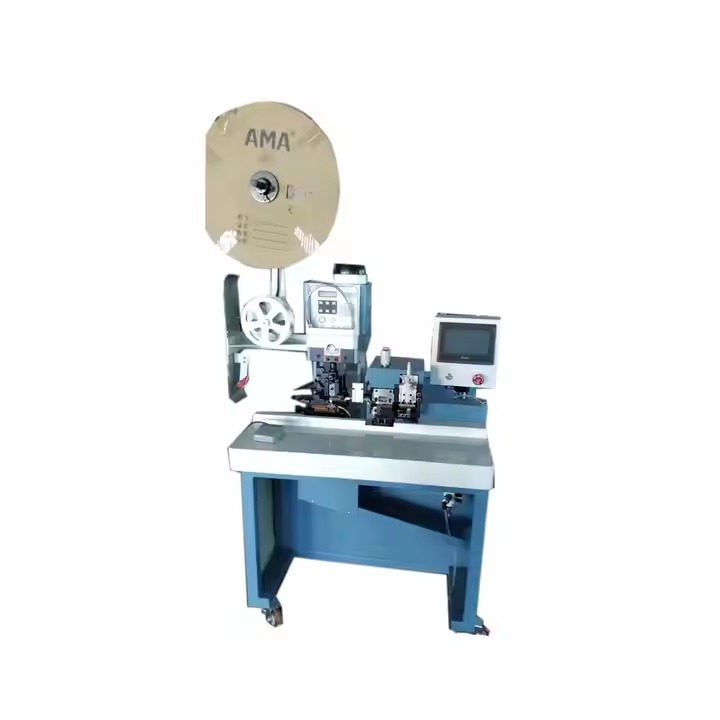

Stripping crimping machine for flat cable/ multi-core cable Automatic stripping Crimping all cable pins

machine features

• suitable for Stripping crimping machine for flat cable/multi-core cable automatic stripping crimping all cables pinsIntroduction:
  This machine designed for ribbon cable and multi-core cable automaticaly continuous crimping the pins of cable.
  Features:
  1. The whole machine adopts PLC program control, man-machine interface 7-inch touch screen, pneumatic and air valve, durable.
  2. Stripping and crimping the terminal can be completed at one time, which is convenient and quick. It adopts frequency conversion control to realize soft start, soft stop and no mechanical loss.
  3. Independent stripping, riveting terminal operation, automatic and manual operation, and each action time can be adjusted according to the specifications of the wire and terminal.
  4. The cassette die and stripping parts are independent, the card die is easy to replace, the stripping depth is adjustable, and the production adaptability is strong.
  5. Proprietary dander recovery device, clean operation.
  • suitable for special Stripping Crimping machine for flat cable/ multi -core cable Automatic stripping crimping all cable pins Technical index tech- parameters Display touch panel Function Stripping, auto crimping pin number 2-13pins/more oins customized Available cable Ribbon cable/Multi-core cable, Multiple elec-tronic wire, AWG16-30 CAble Length Minimum 50mm Crimping force 1.5T/2T depends on product control mode touch panel+pic Air supply 0.3-0.7MPA available terminal continous horizontal terminalStripping length 0-25mm Efficiency 3600pi/H Machine Weight 118kg
