Special For Large Multi – core cable cutting and stripping machine

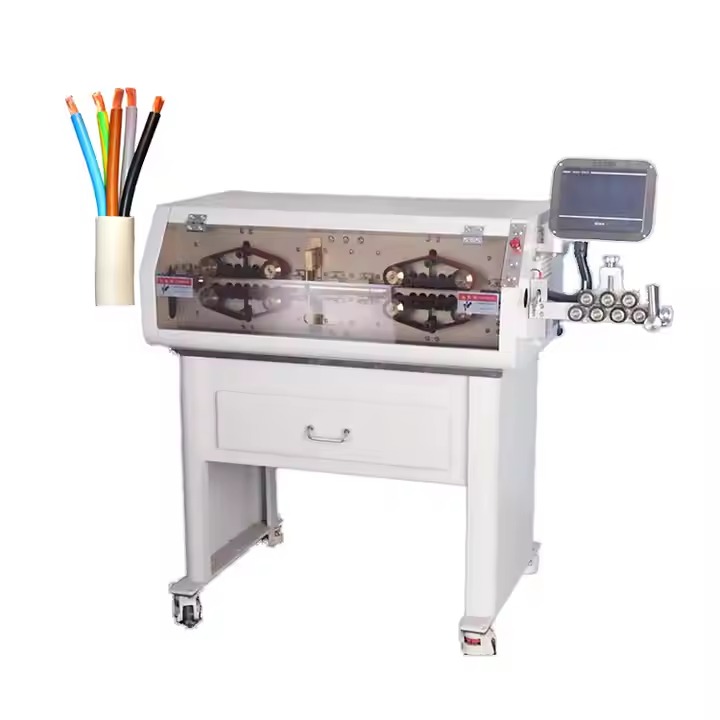

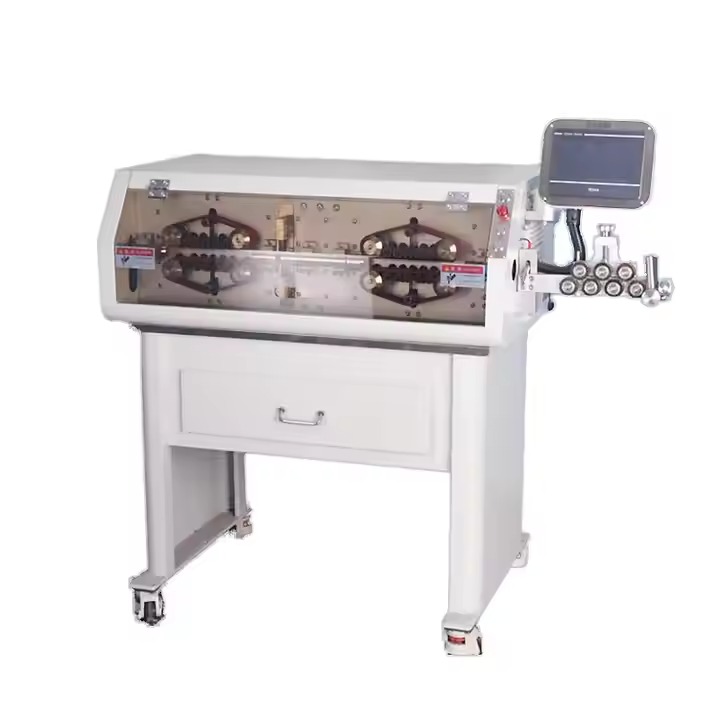

• • suitable for Special for Multi- Core cable Cutting and Stripping machine Model IE-8070 Display mode 7 inch touch screen Powe supply Ac110-220V/(50Hz/60Hz) Stripping length outer sheath 10-120mm Stripping length inner skin Head stripping:10-120mm,end stripping:1-80mm Type of drive 28 wheel driver Cutting Length 1mm–99999.9mm cutting tolerance Within 0.002*Lmm L=Cutting length Tool materials import tungsten steel, quick-cutting steel Remark Function Auto feeding, auto cutting, timimg start Applicable cable 4-70MM2, 1-10 cores, OD 3-15mm Effeciency 500-2000pcs/H depends on wire length

n

• this machine for special for Multi core cablr cutting and stripping machine tail
• Machine features1
  • suitable for advantages
    1, Our stripping machines:
    (1) IE-P001 mini high precision pneumatic wire stripping machine.
    (2) IE-2015D mini high precision electric wire stripping machine.
    (3) IE-3F, SR-4F, multiple inner wires stripping machine.
    (4) IE-305, 310, 330, 315, 416, 650, pneumatic cable stripping machine.
    (5) IE-3FA, SR-310A, hot heating stripping machine for cloth/nylon braided cable stripping.
    (6) IE-3FN, SR-4FN, multiple wires stripping twisting machine.
    (7) IE-200 single wires stripping twisting machine.
    2, Our automatic cutting and stripping machines:
    Remarks: “sqmm” means “Square millimeter”, “OD” means “Outside Diameter”.
    (1) IE-320: Small 2-wire cutting stripping machine, AWG32-14, max OD 5mm.
    (2) IE-360: Wire 0.1-10sqmm, max OD 8mm.
    (3) IE-380: Wire 0.1-16sqmm, max OD 11mm.
    (4) IE-50: Wire 4-50sqmm, max OD 16mm.
    (5) IE-70: Wire 6-70sqmm, max OD 22mm.
    (6) IE-150: Big wire 6-150sqmm, max OD 28mm.
    (7) IE-240: Big wire 6-240sqmm, max OD 45mm.
    (8) IE-FY905: Cutting 2-5 core cable stripping outer and inner skin, OD 1-8mm.
    (9) IE-8070: Cutting Multi-core cable stripping outer and inner skin, 4-30sqmm, max OD 16mm.

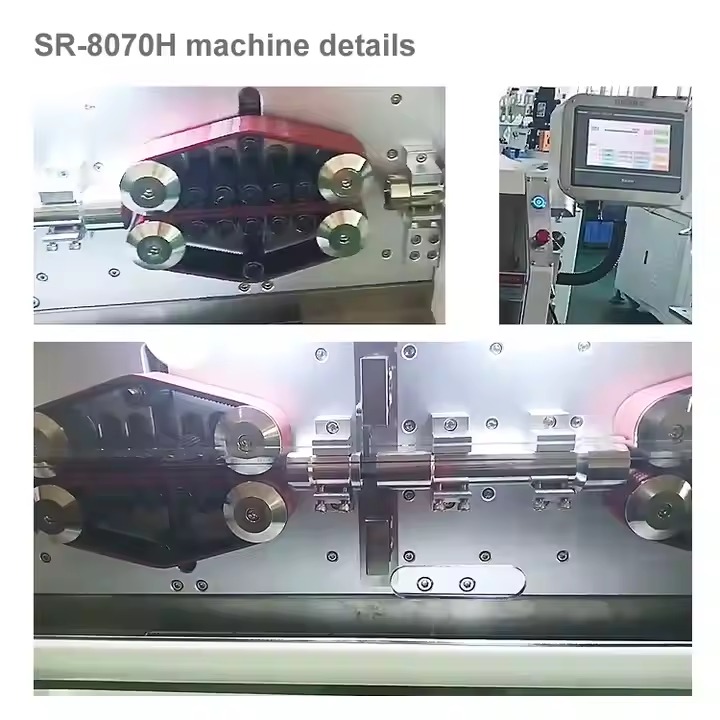

    (10) IE-8070H: Cutting Multi-core cable stripping outer and inner skin, 4-70sqmm, max OD 25mm.
    (11) IE-330A: Flat Ribbon cable cutting splitting stripping.
    (12) IE-320T: 2-wire cutting stripping twisting machine.
    (13) IE-380T: 2-core flat sheathed cable cutting stripping twisting machine.

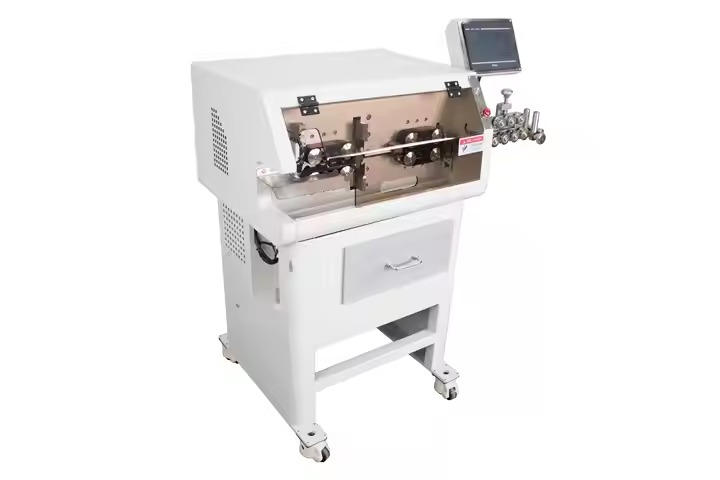

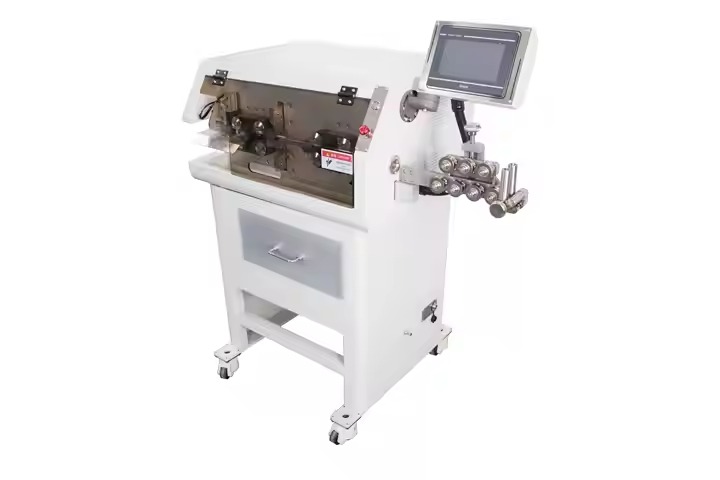

    • • suitable for Special for Multi- Core cable Cutting and Stripping machine Model IE-8300 Dimensions 700*500*600mm Weight 120 Display mode 120kg Display mode 7 inch touch screen Powe supply Ac110-220V/(50Hz/60Hz) Stripping length outer sheath 10-120mm Stripping length inner skin Head stripping:10-120mm,end stripping:1-80mm Type of drive 16 wheel driver Cutting Length 1mm–99999.9mm cutting tolerance Within 0.002*Lmm L=Cutting length Tool materials import tungsten steel, quick-cutting steel Remark Function Auto feeding, auto cutting, timimg start Applicable cable 4-30MM2, 1-6 cores, OD 3-16mm Effeciency 500-2000pcs/H depends on wire length

    n

    • this machine for special for Multi core cablr cutting and stripping machine tail
