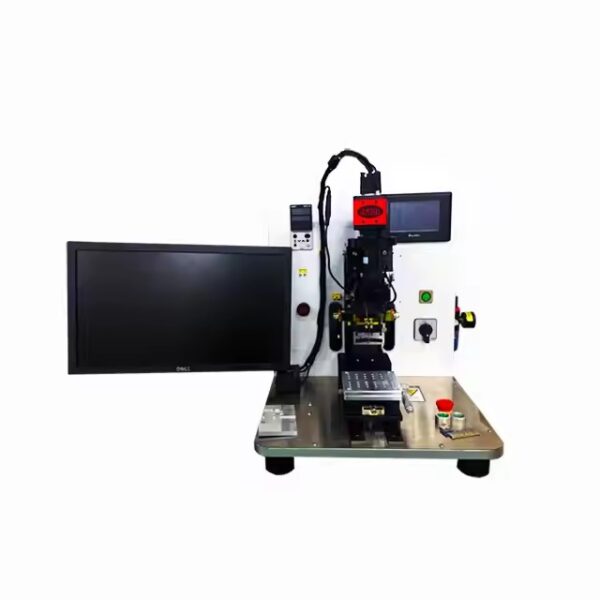

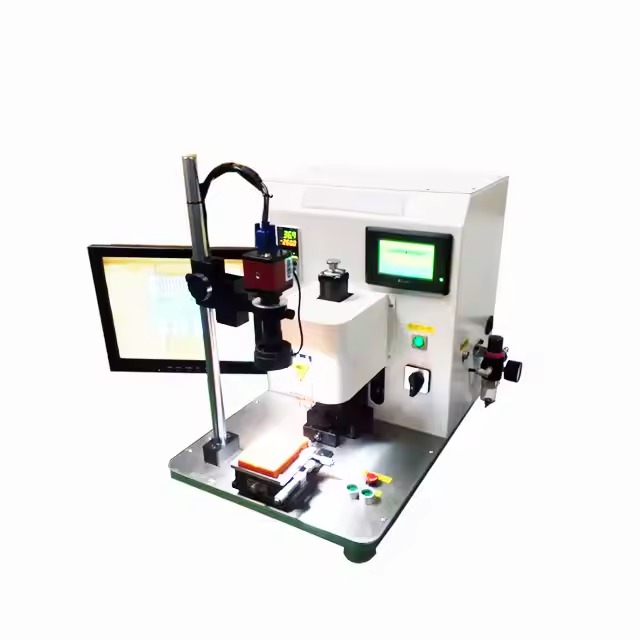

Soldering Machine (high precision)

Machine featuresThis makes hot presses often used in places where temperature is very critical.
When the hot press is working, the machine can be effectively controlled by multi-stage heating.
The temperature of the hot press can be expressed by the real-time temperature curve, which is easy to understand and greatly facilitates the operation of the operator.
Main Features:
1.Japan high-speed temperature controlling system
Pulse heating, easy set soldering parameter, can be set to different multi-zone temperature control sensor detected by the system.
2.Microcomputer control system used to keep the equipment stability.
3. High quality titanium alloy pressure of indenter and imported temperature sensor, to ensure accurate heating temperature.
4.Clamp fixed type, so that soldering is more sophisticated and efficient.
5. Applicable to all kinds of ordinary TAB, TCP crimping, and FPC, FFC and PCB soldering, high speed cable mini SAS, SAS cable, QSFP+, SFP+ and so on.
6. Temperature sensor detected by the system control, and equipped with password protection, the system self-test.
7. High definition CCD alignment position.
8. High quality heat seal application up to 0.25mm pitch
9. Digital programmable temperature control with LCD display.

/
• suitable for soldering machine (high precision) Model IE-301 pressure of indenter 0.02-0.8 Mpa Adjustable pressure accuracy hold time 1~100s each piece of warm-up time 1~2S/ Segment Working Size 150*200mm working pressure 0.4-0.8Mpa temprature range 0 degree c~450 degree C temperature the number and scope of section 8 (including starting / sepration temprature) Working Effeciency 400~600pcs/hour Working environment 0~40degree C, humidity 20%~95%(non-condensing) Machine size 40mm(L)*450mm(W)*510mm(H) Weight 85Kg
