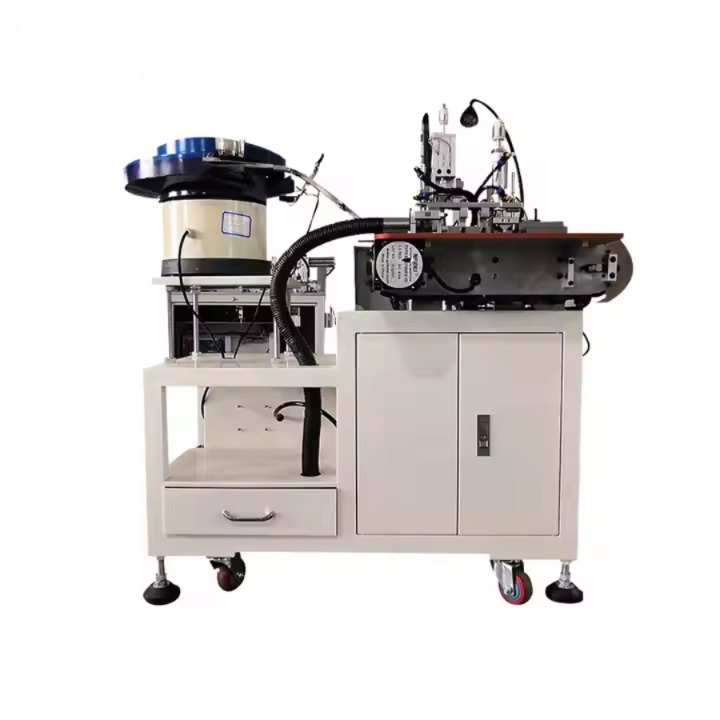

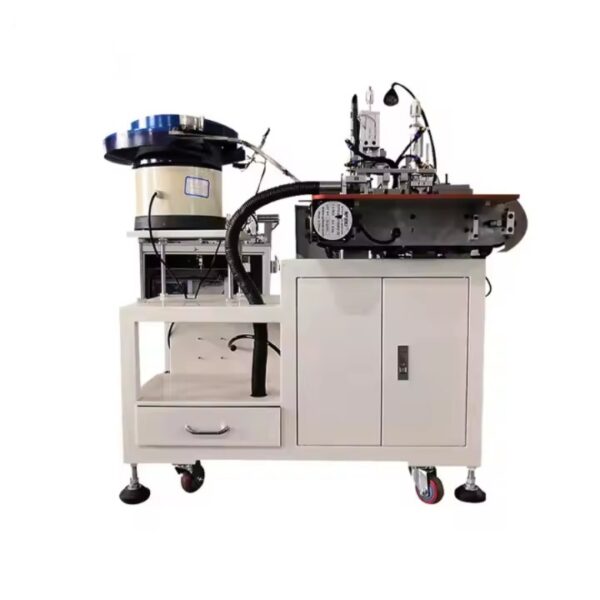

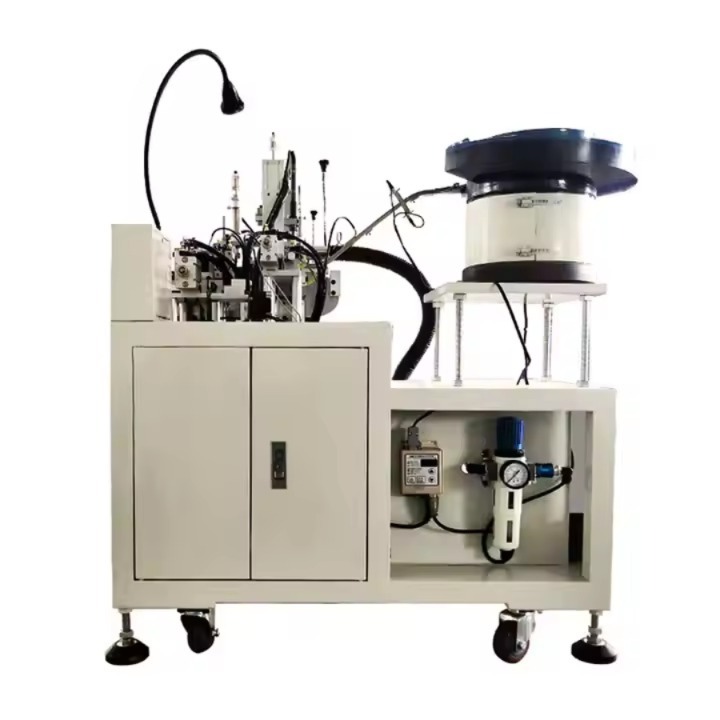

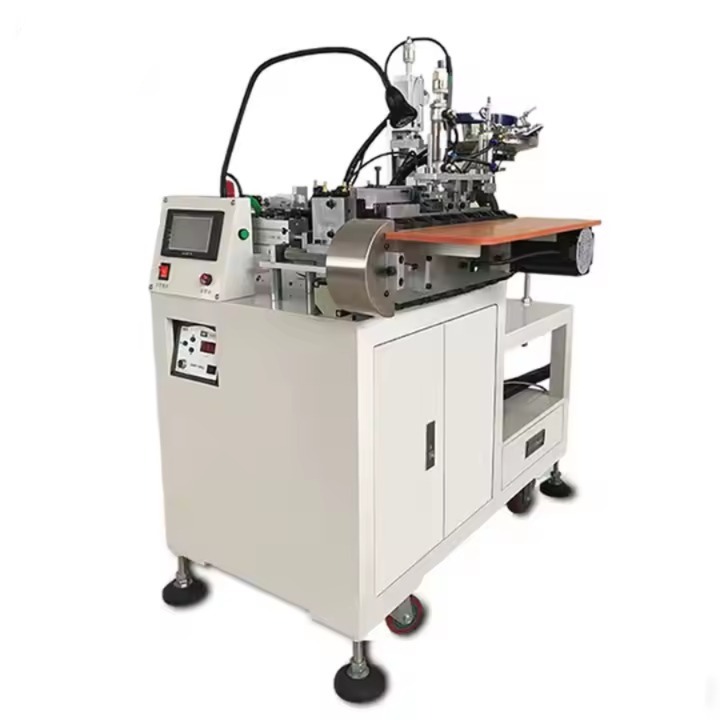

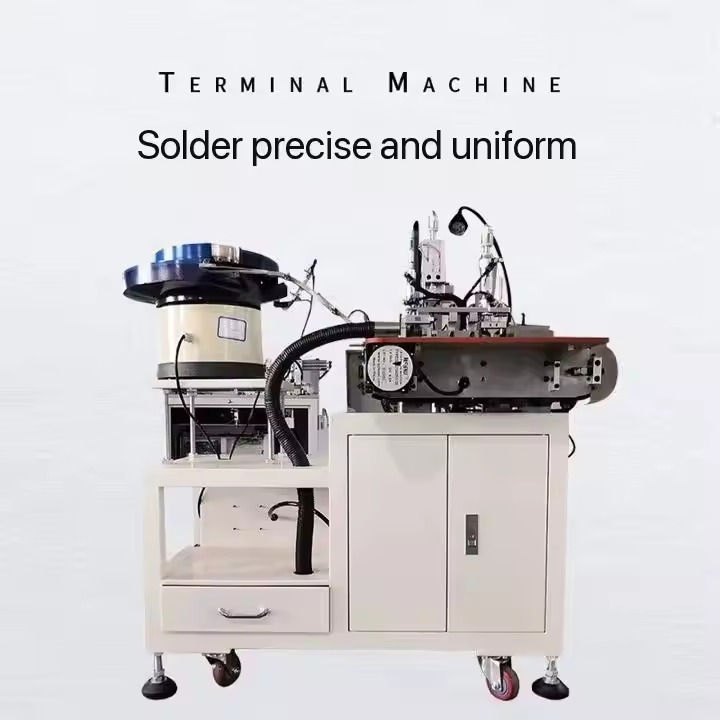

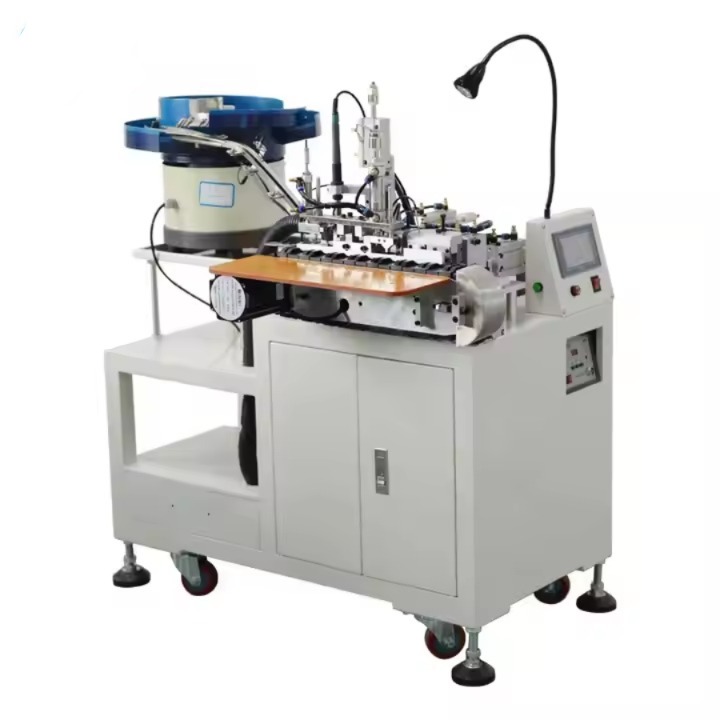

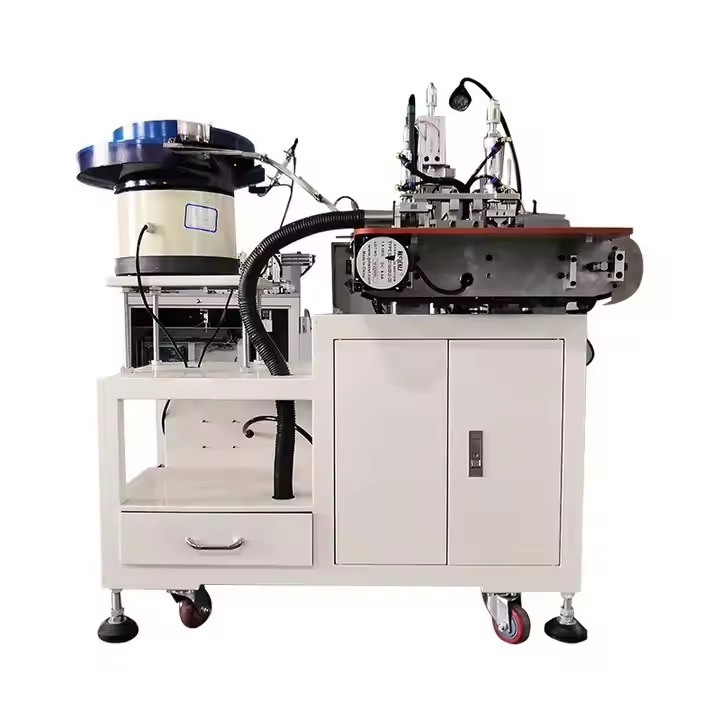

Semi-Automatic USB Data Cable Soldering Machine

310,000.00

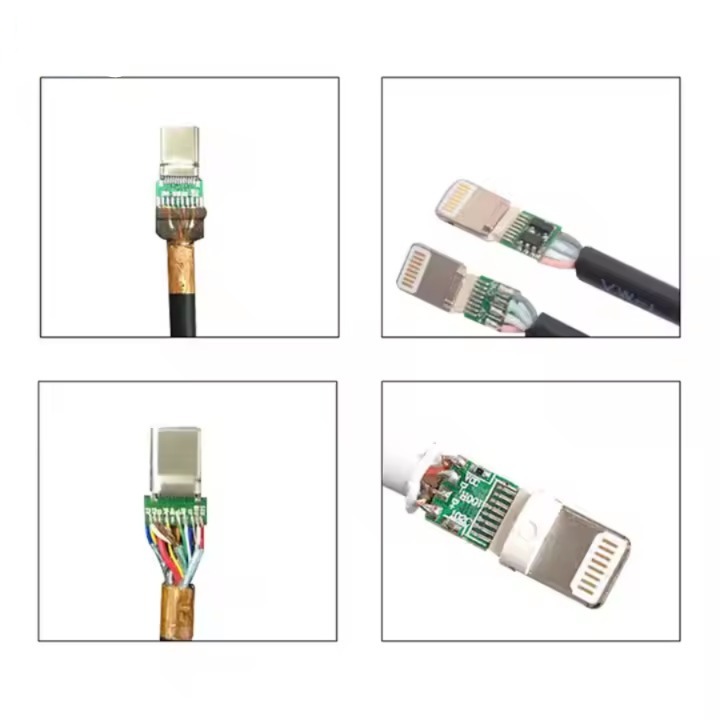

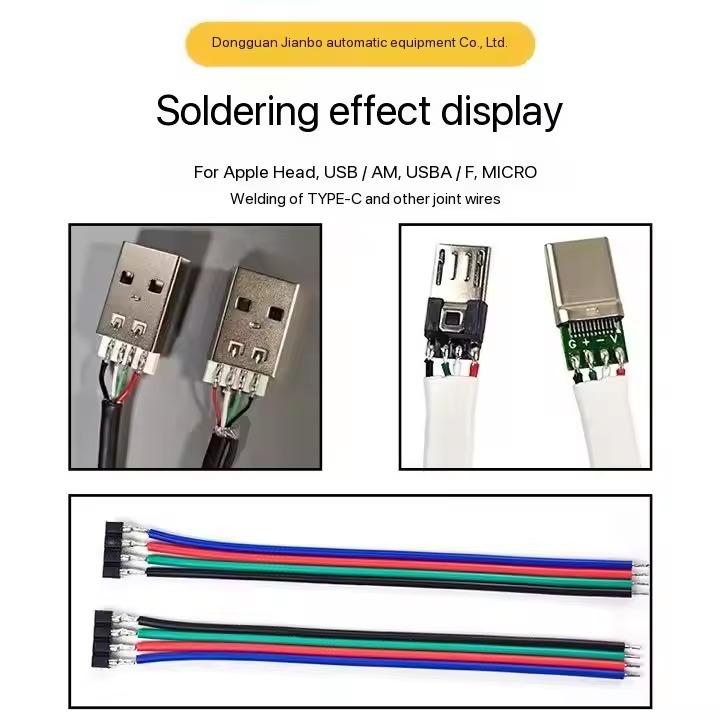

This soldering machine is used for soldering USB cable wire with different USB connectors. Just like USB A, USB AM, Micro, Micro Female, Type c , lightning, 3in1 cable adapter……

Automatic feeding of vibrating disc, cutting, stripping, and soldering all combine together. Low defective and high efficiency.

Features:-

1. Compact structure design, high precision, and the low defective rate

2. High productivity 1200-1500 Pcs/H, 4 times than soldering by hands, One machine can replace 4 workers

3. High stability of the machine, easy to operate

4. Constant temperature soldering iron temperature display

5. Semi-automatic or fully automatic operation mode (semi-automatic footswitch and infrared induction).

6. High quality of the welded products is stable, without false soldering or continuous soldering, the tin spot is full and fastness

Share

    Model-IE-108DC
    Name-Semi-automatic soldering machine/ USB data cable soldering machine
    Power supply-AC 220V 50/60Hz
    Soldering type-Pulse welding, spot welding available
    Applicable connectors-DC/RCA head, solid plug head, etc.
    Applicable cables-2468, wire ID0.3~1.2mm, PVC, PE, TPU, copper/copper coated steel/copper coated Aluminum cable, cotton and nylon braided wire
    Wire length after welding-2.5~8mm
    Soldering tin size-OD 0.6~1.2mm (save 15% tin consumption)
    Soldering temperature-250~600 degree(adjustable)
    Operation method-adjust, Single action operation, serial operation
    Productivity-2500~4000pcs/H
    Consumption parts-the iron head, stripping & cutting blade, iron handle
    Air pressure-5~6kgf/cm2
    Measurement-1180*750*1120mm
    Weight-220kg
