openOther Customized Automatic Machine Automactic Stripping crimping housing inserting machine for sheathed cable Automatically strip skin, crimp terminal, insert housing, all in one machine

Other Customized Automatic Machine Automactic Stripping crimping housing inserting machine for sheathed cable Automatically strip skin, crimp terminal, insert housing, all in one machine

  • suitable for Automatic Stripping crimping housing inserting machine for sheathed cable Automatically Strip Skin, crimp terminal, insert housing, all in one machine Technical Index Tech-parameters Model IE-2025C Display Touch panel Function cut, strip, crimp, insert housing Availble cable AWG20#-30#2-20pin Applicable terminal Customized Crimping force 2T or customized base on products Stripping length 1-7mm Efficiency TErminal 5000/H or housing 1000HDefective rate 3-5% Detector Optional: Use the intelligent CCD camera to confirm the wire color sequence and monitor in real time. Air supply 0.5~0.7MPA power 7.5kw Machine Dimensions(L*W*H) 2200*800*1800mm Machine weight 800Kg

    • n

  • the Automatic Stripping Crimping Housing inserting machine for sheathed cable Automatic strip skin, crimp terminal, insert housing, all in one machine tail
Add to WishlistRemove from Wishlist
Add to Wishlist
Share
SKU 37
Category

    Machine features
    1

    • suitable for Other Customized Automatic Machine

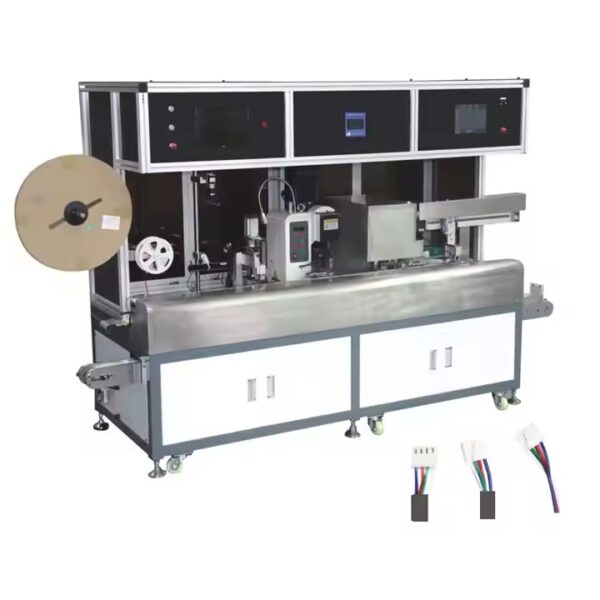

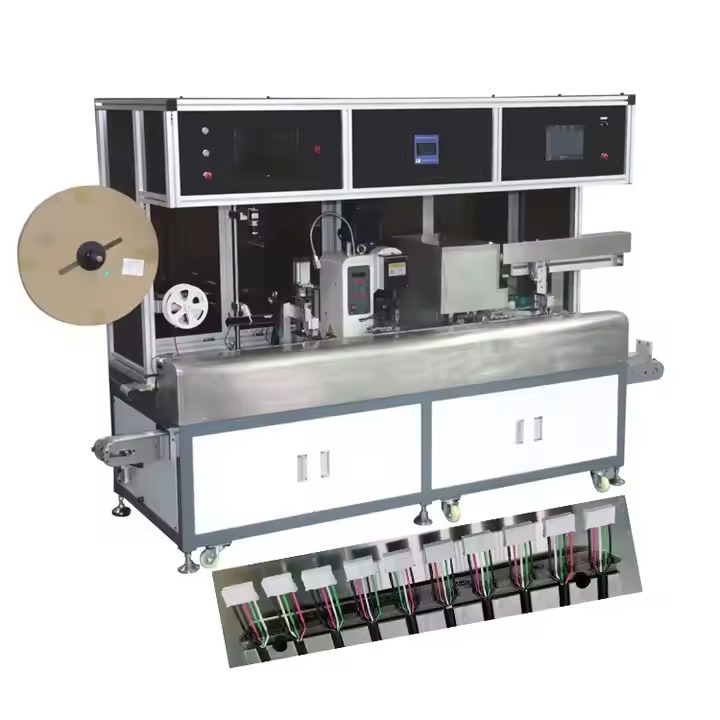

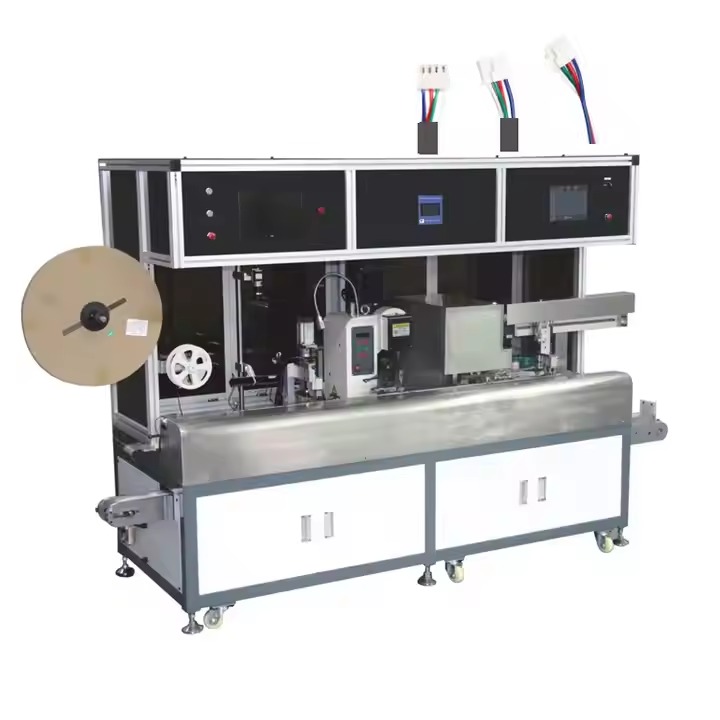

      This equipment is a multi-core cable automatic stripping, terminal and shell inserting machine designed and developed by our company independently. Perfectly complete all processes on one machine, effectively improve the degree of automation and production efficiency of wire harness production.
      Features:
      1. Optional: Use the intelligent CCD camera to confirm the wire color sequence and monitor in real time
      2. Use terminal pressure control system, fast response and high precision to ensure the crimping quality of the terminal.
      3. Adopt Panasonic PLC control system to realize perfect transfer of multiple stations.
      4. Intelligent touch man-machine interface, realize full digital operation, menu-type intelligent page.
      5. New multi-workstation design, efficient and stable, and convenient debugging.
      6. Multi-station intelligent transfer, automatic control, smooth movement.
      7. The warranty period of the equipment is 12 months, and consumables are not covered by the warranty. Lifetime paid service is provided after the warranty period.
      8. Consumables include cutting blades, crimping blades, positioning blades, and a free set of spares is included.

      • suitable for Automatic Stripping crimping housing inserting machine for sheathed cable Automatically Strip Skin, crimp terminal, insert housing, all in one machine Technical Index Tech-parameters Model IE-2025C Display Touch panel Function cut, strip, crimp, insert housing Availble cable AWG20#-30#2-20pin Applicable terminal Customized Crimping force 2T or customized base on products Stripping length 1-7mm Efficiency TErminal 5000/H or housing 1000HDefective rate 3-5% Detector Optional: Use the intelligent CCD camera to confirm the wire color sequence and monitor in real time. Air supply 0.5~0.7MPA power 7.5kw Machine Dimensions(L*W*H) 2200*800*1800mm Machine weight 800Kg

        • n

      • the Automatic Stripping Crimping Housing inserting machine for sheathed cable Automatic strip skin, crimp terminal, insert housing, all in one machine tail ,li>
