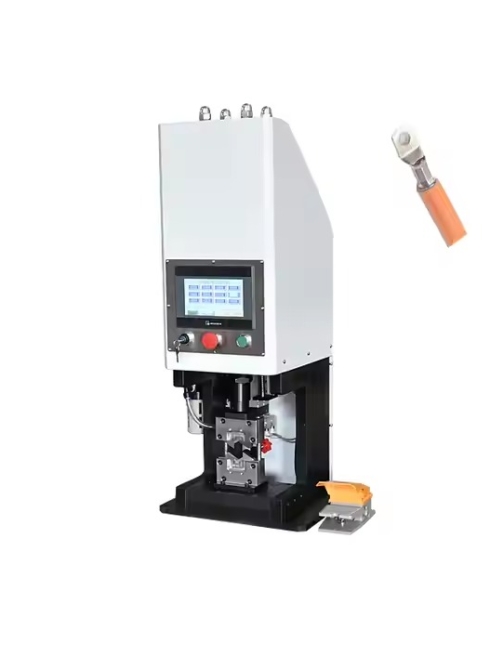

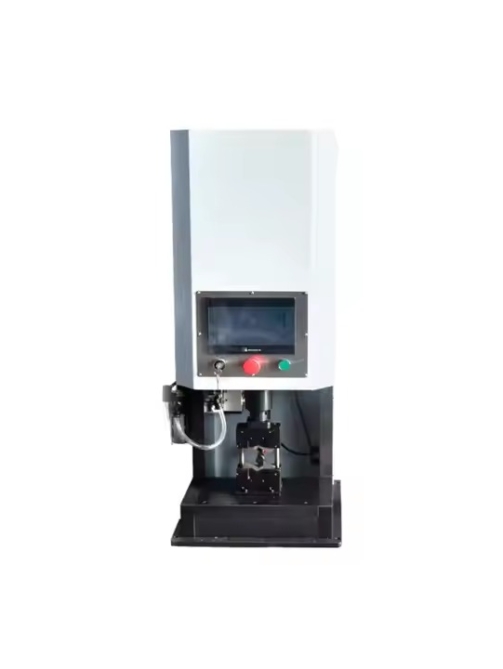

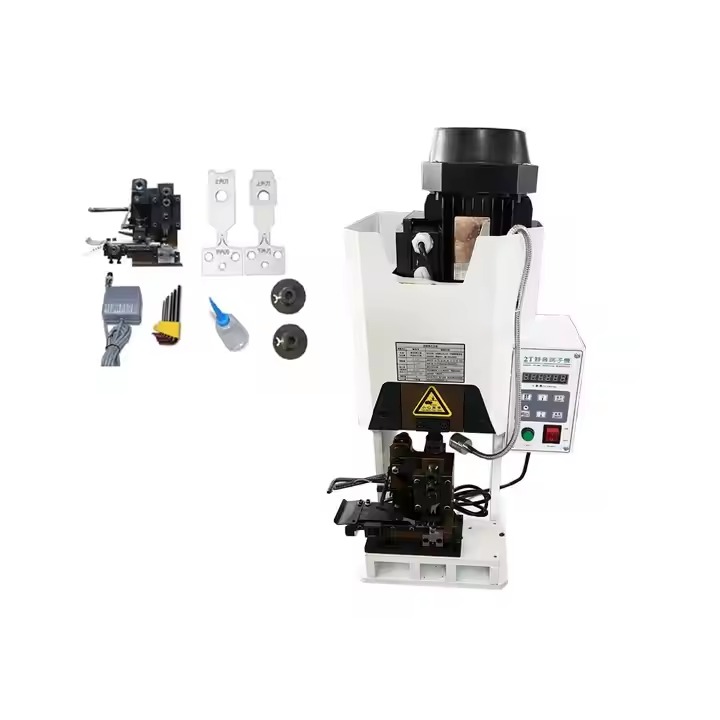

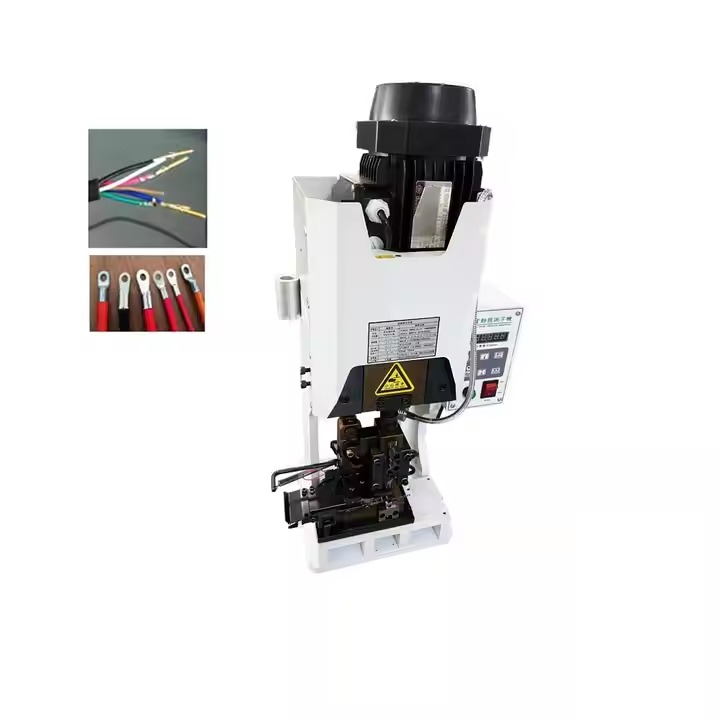

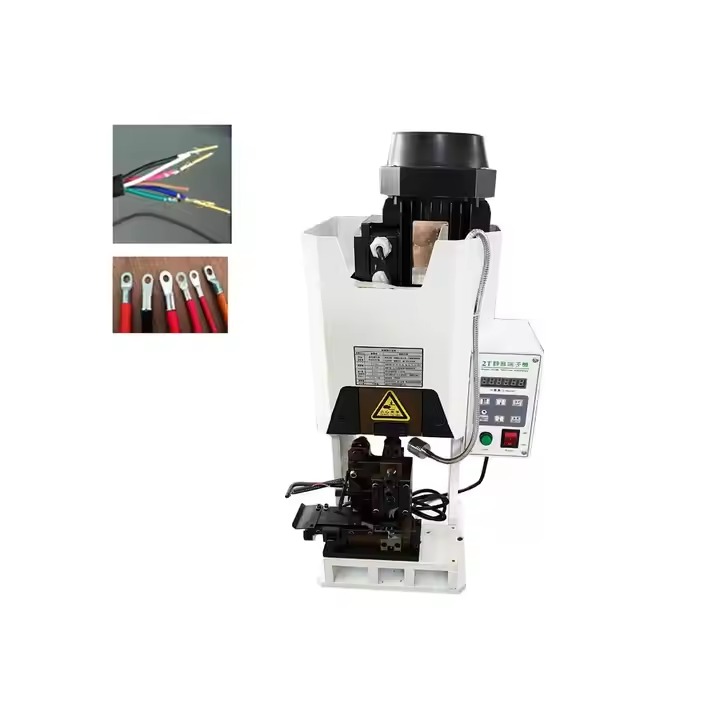

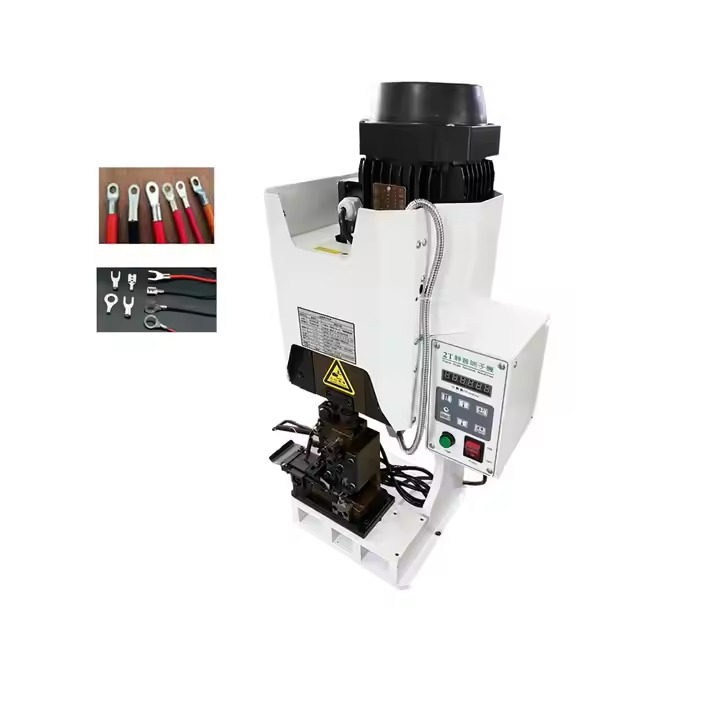

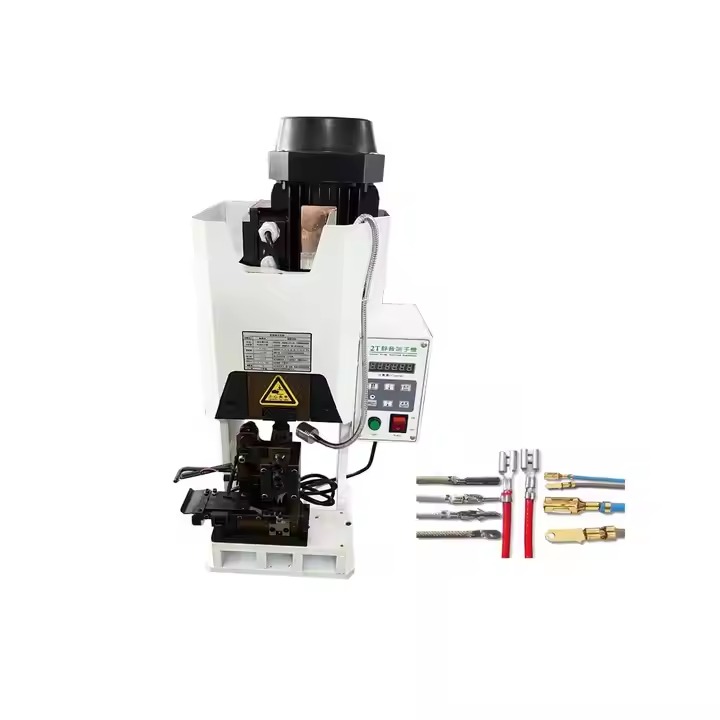

Mute Terminal Crimping machine

machine fetures

• • suitable for specialmute termianla crimping machine Mute terminal model ultra-quiet terminal machine, using high-tech frequency conversion technology and electronic accurate positioning.
    Motor working noise is smaller than traditional terminal machine when crimping, and power saving.
    Mold adjustment is more convenient and faster; avoid traditional terminal clutch, electromagnet And other common faults! Features:

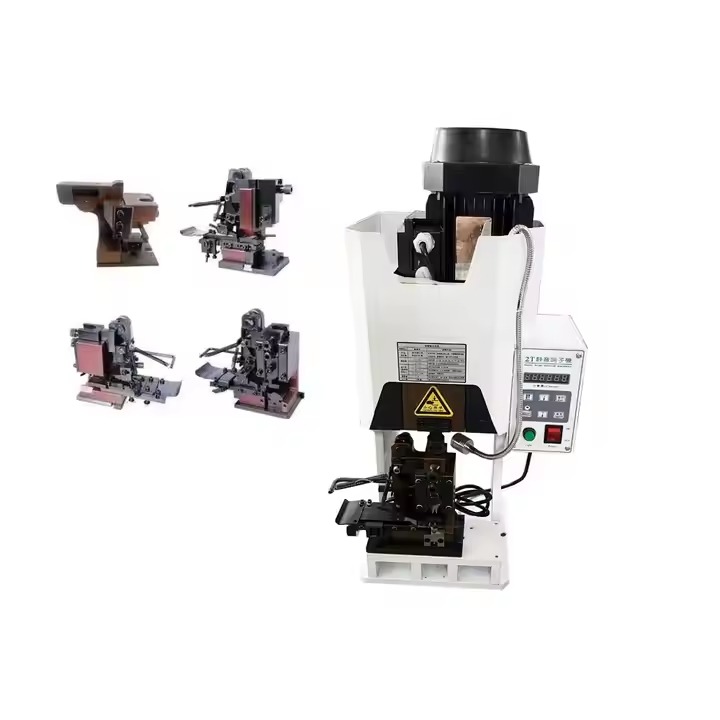

    1) Replaceable direct delivery mold, cross feeding mold, single terminal mold.
    2) The voltage is stable and the speed is high.
    3) Computer terminal DC terminal Single terminal With terminal.
    4) Lightweight structure Easy to move the workplace, the operation sound is small.
    5) Support to use OTP mould, 2000style mould, single terminal mould. Technical Index Tech- parameters Crimping force 1.5T/2T(3T,4T,6T,8T for option) Motor power 0.55KW/0.75KW Working Voltage 200-240V50/60HZ Stroke 30mm Working effciency 1000-2500Pcs?H depends on manual Machine Dimensions (L*W*H) 230*210*580mm/275*225*580mm/275*225*670mm Machine Weight 40/50kg Applicable Mold OTP type Horizontal mold, vertical mold, Single grainmold,

n

• this machine for special Mute terminal crimping machine tail
