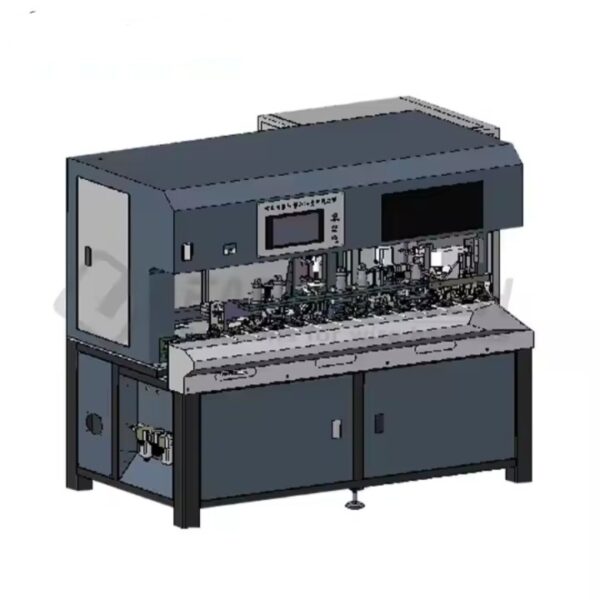

openFully Automatic Power cord cutting Crimping Machine Automatically feed cable, cut cable, strip skin, crimp plug, all in one machine

Fully Automatic Power cord cutting Crimping Machine Automatically feed cable, cut cable, strip skin, crimp plug, all in one machine

  • suitable for Automatic power cord cutting stripping crimping machine Automatically feed cable, cut cable, stip skin, crimp plug, all in one machine Technical Index tech- parameters Model IE-08FGT Display touch Panel Function Auto feed, cut cable, strip cable, polarity recognotion, crimp plug Availble Plug chinese plug, french plug, Thai plug, amer~ican plug, Eruopean plug, etc. support customized. Crimping force 4T/6T Customized base on products Efficiency 900-1400/H depends on wire length and pins Detector polarity recognition,CCDnAir supply 0.5~0.7MPA Power 5.5kw Adjustable wire lenght, crimping depth, crimping delay, speed machine Dimensions(L*W*H)1800*1300*1900mm Machine Weight 1000Kg

    • n

  • the Fully automativ power cord cutting stripping machine Automatically feed cable, cut able, strip skin, crimp plug, all in one machine tail
Add to WishlistRemove from Wishlist
Add to Wishlist
Share
SKU 38
Category

    machine features

    • suitable forOur crimping machines:
      (1) Semi-auto super mute crimping machine: 1.5T, 2T, 3T, 4T, 6T, 8T.
      (2) Servo motor drive crimping machine: suitable for enameled wire splicing.
      (3) Servo motor drive hexagon terminal crimping machine 15T.
      (4) Hydraulic hexagon/B-shape/point press terminal crimping machine 20T.
      (5) Auto feeding loose terminal crimping machine, with vibrator.
      (6) Full auto single/double end wire cutting stripping crimping machine.
      (7) Full auto one side crimping, one side twisting tinning machine.
      (8) Full auto cutting stripping crimping housing insertion machine.
      (9) Further information please contact us.

      • suitable for Automatic power cord cutting stripping crimping machine Automatically feed cable, cut cable, stip skin, crimp plug, all in one machine Technical Index tech- parameters Model IE-08FGT Display touch Panel Function Auto feed, cut cable, strip cable, polarity recognotion, crimp plug Availble Plug chinese plug, french plug, Thai plug, amer~ican plug, Eruopean plug, etc. support customized. Crimping force 4T/6T Customized base on products Efficiency 900-1400/H depends on wire length and pins Detector polarity recognition,CCDnAir supply 0.5~0.7MPA Power 5.5kw Adjustable wire lenght, crimping depth, crimping delay, speed machine Dimensions(L*W*H)1800*1300*1900mm Machine Weight 1000Kg

        • n

      • the Fully automativ power cord cutting stripping machine Automatically feed cable, cut able, strip skin, crimp plug, all in one machine tail
