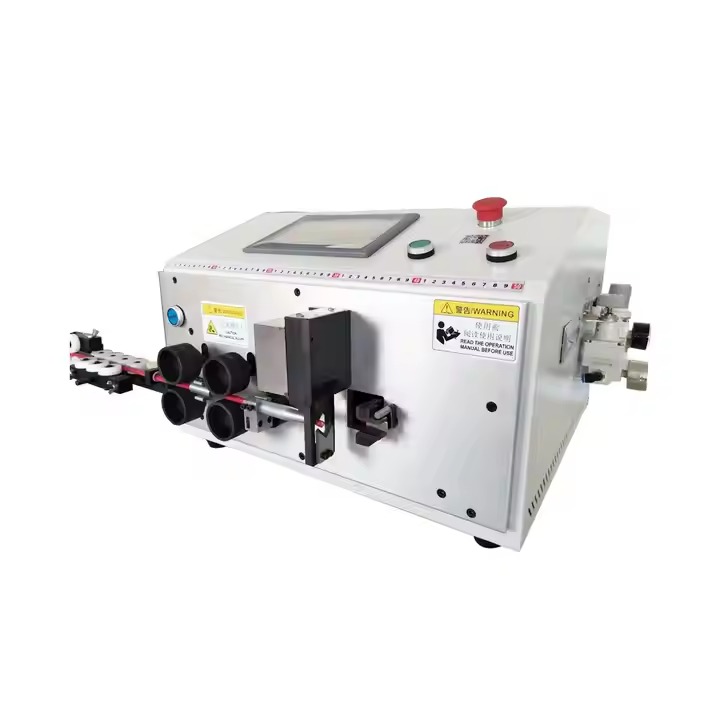

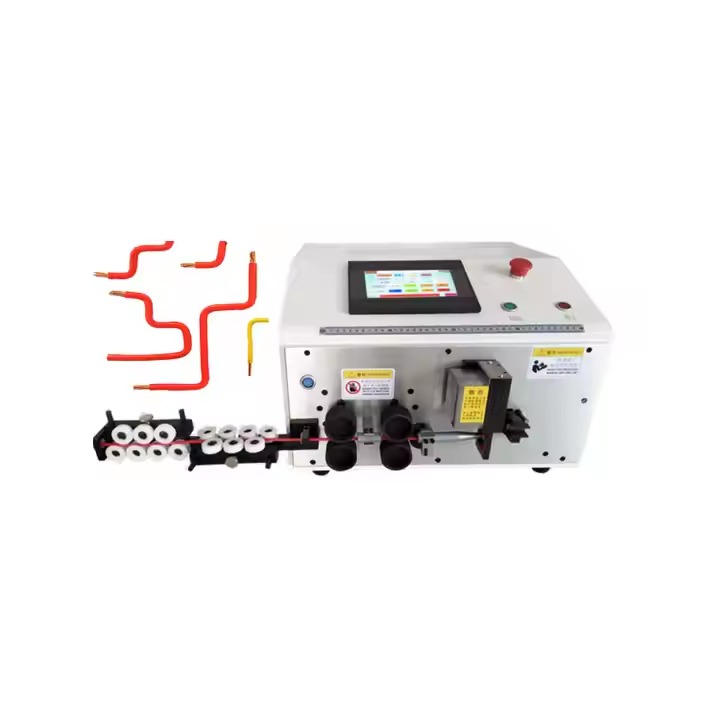

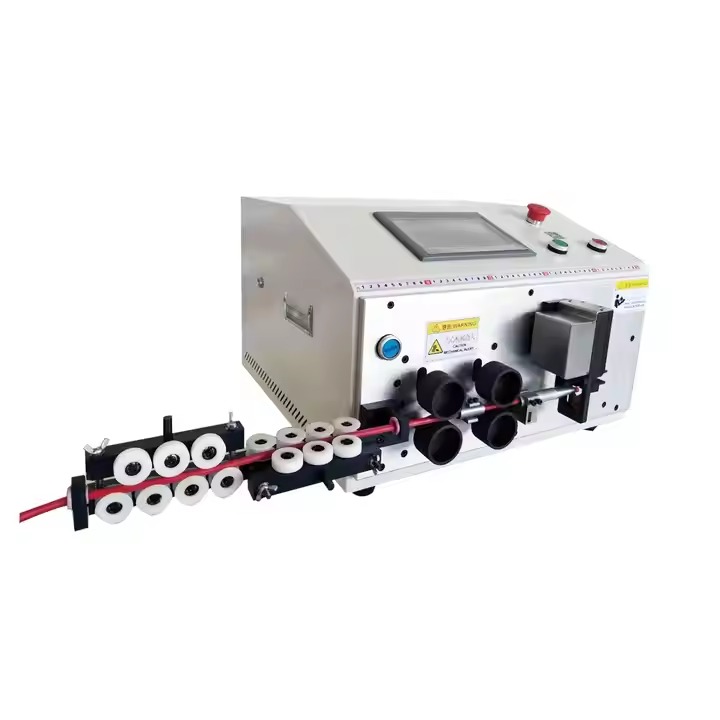

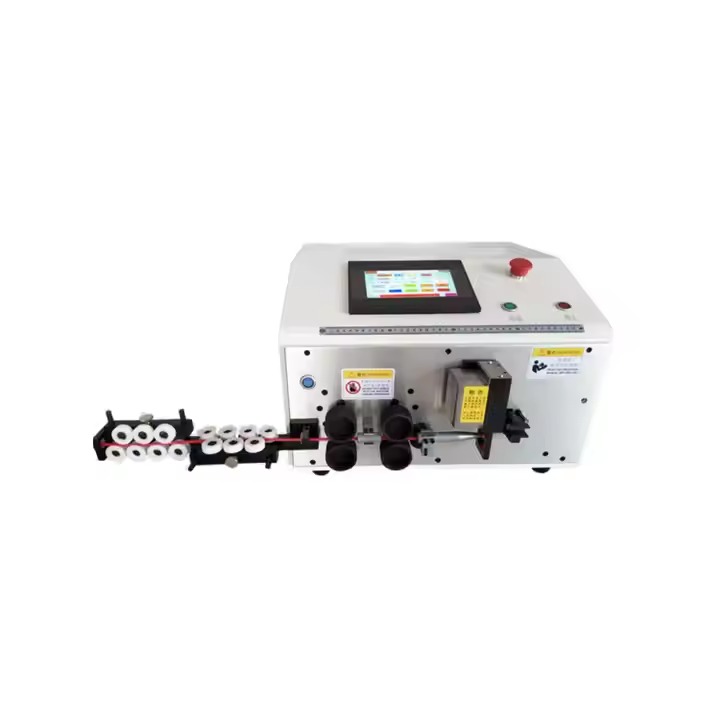

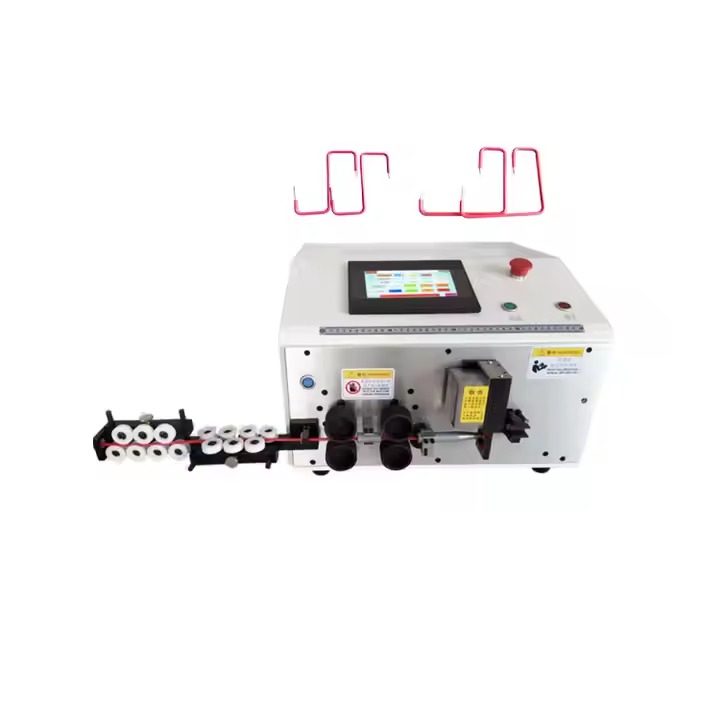

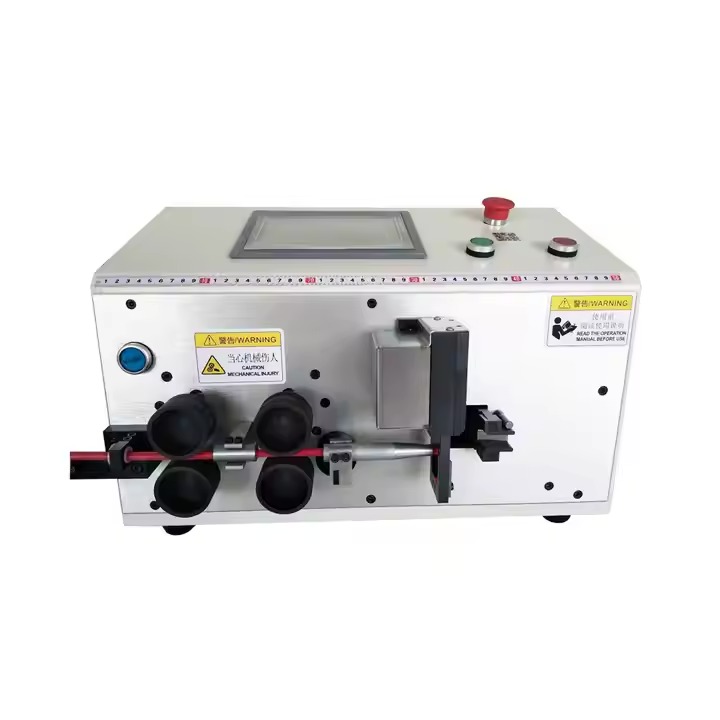

Automatic Cable Bending Machine

machine featuresIt is suitable for all kinds of enterprises that need wire cutting, stripping and bending processes such as automobile wiring harness / electricity / distribution cabinet / battery box.Model SR-B06
Applicable wire within 6sqmm
Cutting length 0.1-99999.9mm
Stripping length 0.1-100mm
Number of bending 13
Bending length adjustable
Length accuracy ±(0.002*L)mm
Size 530*420*370mm
Weight 45KG
Power supply AC 220V 50/60HZ(1) This machine uses the latest 32-bit intelligent control system, Chinese and English switching LCD display, touch screen control system, can store 99 messages, call at any time, efficient and convenient.
(2) Suitable for new energy cable, power distribution box, BV.BVR, PVC, cutting, stripping and bending machine, two-way 30-90 degrees.
(3) The automatic cutting, stripping, semi stripping and bending functions can be completed at one time. It can instantly change the specifications and sizes of wires, and save 3 labor for you. The economic effect is very high.
(4) Machine warranty: 1 year
(5) Control mode: Touch screen.
(6) Bending method: clockwise , anticlockwise, bending degree can adjust, one wire can bend any angle.

• suitable for Automatic cable bending machine Full automatic cutting stripping bending machine Automatic ,cutting cable, stripping skin, bending all in one machine Model IE-B450 Dimensions 530*420*370mm Weight 48kg Display mode English/Chinese interface touch panel display power supply AC175V-250V, 50/60HZ Cutting Length 0.1mm– 99999mm Stripping length 0.1~100mm bending times 13times bending length last bending length at least 30mm Bending mode Clockwise, counterclockwise, adjusable degree of bending, 30de-grees, 45 degrees, 60 degrees, 90degrees. The same line can be folded back and forth at the same time. U type is the shortest 30mm

n

• the full automatic cutting stripping bending machine Automatic cutting cable, stripping skin, bendingall in one machine tail

---
